87278-2

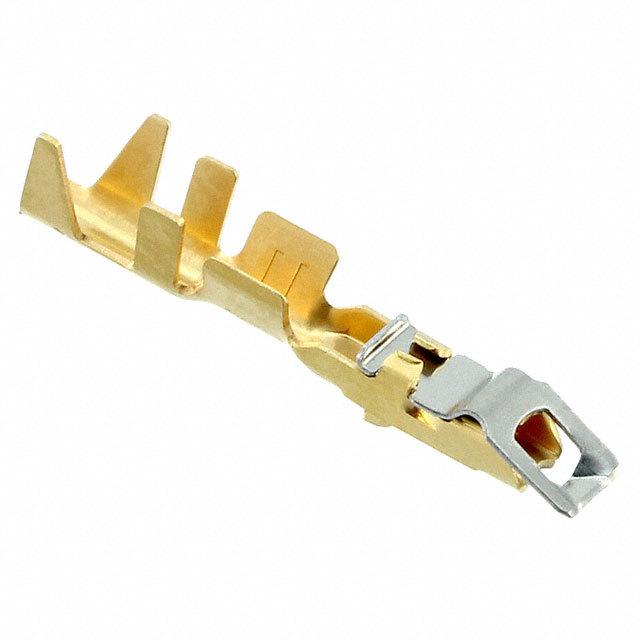

TE Connectivity AMPMODU 锁夹压接触点AMPMODU 锁夹压接触点适合与 AMPMODU 0.79 x 1.57mm 互连系统一起使用。 这些锁夹压接触点具有不锈钢弹簧和绝缘支架。 库存号 745-5826 具有 1.27mm 到 2.54mm 绝缘直径范围，触点区域上具有 0.00038mm 镀金，且整个支柱镀 0.00127mm 镀金。### TE Connectivity AMPMODU 0.79 x 1.57mm Connectors

AMPMODU 锁夹压接触点

AMPMODU 锁夹压接触点适合与 AMPMODU 0.79 x 1.57mm 互连系统一起使用。 这些锁夹压接触点具有不锈钢弹簧和绝缘支架。 库存号 745-5826 具有 1.27mm 到 2.54mm 绝缘直径范围，触点区域上具有 0.00038mm 镀金，且整个支柱镀 0.00127mm 镀金。

得捷:
CONN SOCKET 18-22AWG CRIMP GOLD

欧时:
TE Connectivity AMPMODU 系列 母 压接端子触点 87278-2, 镀金 磷铜触芯, 12mΩ最大接触电阻, 22AWG

贸泽:
Headers & Wire Housings LOCKING CLIP ASSY 31X62 LP

艾睿:
Need a strong connection for your wires? This 87278-2 connector contact from TE Connectivity is the most traditional form of connections binding. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 5 A. This has a Connector Headers and PCB Receptacles connector. This connector contact has a minimum operating temperature of -65 °C and a maximum of 105 °C. It uses the crimp termination method. This product is 18.13 mm long and 3.42 mm. Its wire is 18-22 AWG.

安富利:
Contact SKT Crimp ST Cable Mount Loose Piece

Chip1Stop:
Contact SKT Crimp ST Cable Mount Loose Piece

Verical:
Contact SKT Crimp ST Cable Mount 18-22AWG Loose

Newark:
# AMP - TE CONNECTIVITY  87278-2  LOCKING CLIP ASSY 31X62 LP

MASTER:
LOCKING CLIP ASSY 31X62 LP

Online Components:
LOCKING CLIP ASSY 31X62 LP

Electro Sonic:
LOCKING CLIP ASSY 31X62 LP
