87233-2

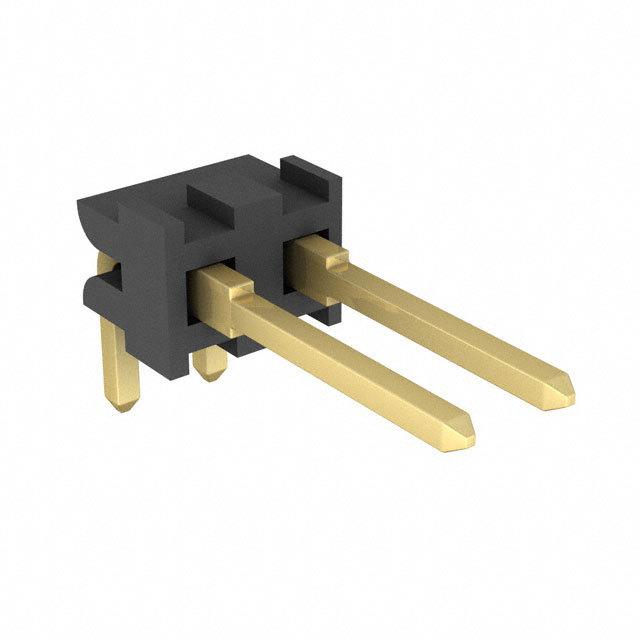

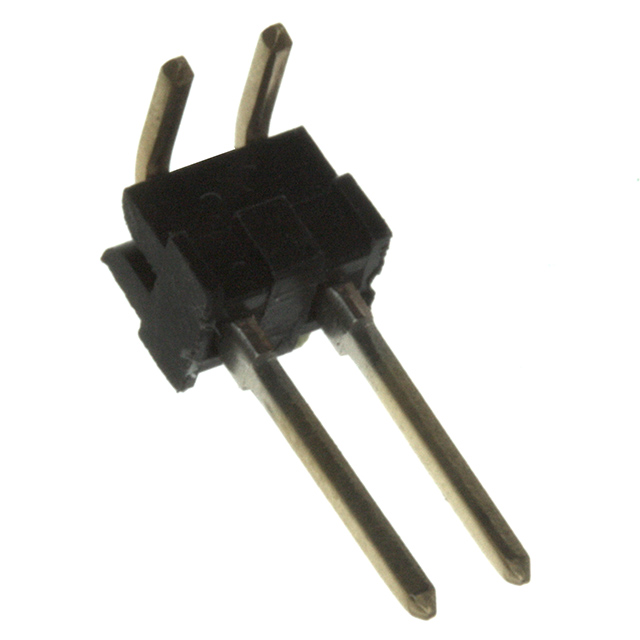

AMP - TE CONNECTIVITY 87233-2 Board-To-Board Connector, 2.54mm, 2Contacts, Header, AMPMODU Mod II Series, Through Hole, 1Rows

针座 通孔，直角 2 位置 0.100"（2.54mm）

得捷:
CONN HEADER R/A 2POS 2.54MM

贸泽:
Headers & Wire Housings UNSHRD R.A. SINGLE 2

艾睿:
Are you looking for a solution to support physical configuration options on your PCB? Then mount this unshrouded 87233-2 header connector from TE Connectivity on your PCB today! This HDR connector&s;s 2 contacts that are made out of copper alloy and plated with gold over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a right angle body orientation. It has a header type gender. This device has a maximum current rating of 3 A/contact. This product is 4.67 mm long, 3.51 mm tall and 12.24 mm deep. It uses the solder termination method. 87233-2 is housed in black thermoplastic. This connector has an operating temperature of -65 to 105 °C.

Jameco:
Connector Unshrouded Header 2 Position 2.54mm Solder Right Angle Thru-Hole

安富利:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Carton

Verical:
Conn Unshrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Carton

Newark:
# AMP - TE CONNECTIVITY  87233-2  Board-To-Board Connector, 2.54 mm, 2 Contacts, Header, AMPMODU Mod II Series, Through Hole, 1 Rows

MASTER:
HEADER ASSY, MOD II, .100C/L, SINGLE ROW, RIGHT ANGLE, .025 SQUARE POST

Powell:
.100 inch AMPMODU Headers

Online Components:
02 MODII HDR SRRA UNSHRD .100

Electro Sonic:
02 MODII HDR SRRA UNSHRD .100
