Pressure Switch; Ultra Duty; NO; 2 Terminals; Screw; 10-35psi; Set at 10psi
Sensing and Control has designed a high pressure/low set point pressure switch for applications that see sudden pressure spikes and high system pressures that can result in early switch failures. This series has been strengthened to prevent cracking of the base with plated steel and screw machined components in a 3-piece design. Modifications to the effective area of the pressure cavity and size of the diaphragm button and diaphragm o-ring are what makes the switch capable of handling sudden pressure transients and high system pressures that are common in applications such as braking, transmission and hydraulic systems.

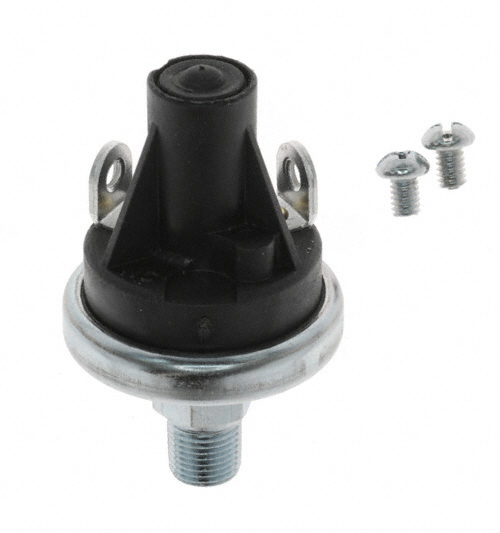

The switch"s physical appearance is similar to our 5000 Series switches with a height of only 2.3" approx. and a diameter of 1.47". In comparison to our 5000 Series Switch the burst rating has significantly increased from 1250 psi to over 4000 psi on the new design.
83298 10 PS 70111547 I is factory set at 10 psi, as opposed to the standard 83298 20 psi.
