83F6R19

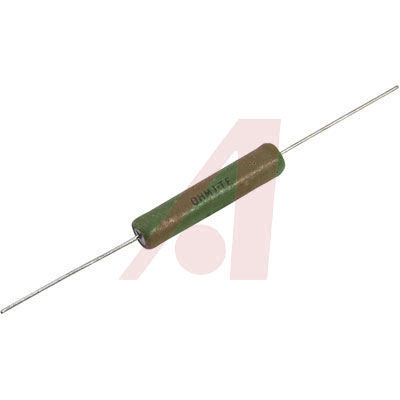

83F6R19图片1
83F6R19图片2
83F6R19概述

线绕电阻器 - 透孔 3watt 6.19ohm 1% Axial

High quality conformal silicone-ceramic coated resistors for applications requiring high precision, power and stability. These resistors have a low temperature coefficient and maintain a high degree of stability under demanding conditions. They feature all-welded construction and have the ability to maintain accurate resistance values due to being stabilized. Ceramic core with solder coated axial leads.
.
*

Features:

**

* High Stability ±1% Tolerance**

**

* Designed for Precision Power Applications**

**

* All Welded Construction

83F6R19中文资料参数规格
技术参数

容差 ±1 %

额定功率 3 W

产品系列 80

电阻 6.19 Ω

阻值偏差 ±1 %

工作温度Max 275 ℃

工作温度Min 25 ℃

封装参数

安装方式 Axial

外形尺寸

长度 15.1 mm

直径 Φ5.50mm

物理参数

工作温度 25℃ ~ 275℃

温度系数 ±50 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 100

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买83F6R19
型号: 83F6R19
制造商: Ohmite
描述:线绕电阻器 - 透孔 3watt 6.19ohm 1% Axial
