80 系列按钮开关这些瞬时型咬接式按钮开关均具有瞬时接通触点。 提供各种触点配置和盖、框架垫圈和螺母。 典型应用: 仪器仪表 计算机外围设备 电信设备瞬时型按钮开关 焊片 柱塞 Ø 3.1mm 正向触感 提供多个位置 多种端接选项 环氧终端密封,采用底部冲洗清洁 ### 4 - 7mm 直径开孔 - 低电压 - 按钮开关
80 系列按钮和附件
这些瞬时型咬接式均具有瞬时接通触点。
提供各种触点配置和盖、框架垫圈和螺母。
典型应用:
仪器仪表
计算机外围设备
电信设备
瞬时型按钮开关
焊片
柱塞 Ø 3.1mm
正向触感
提供多个位置
多种端接选项
环氧终端密封,采用底部冲洗清洁
### 注

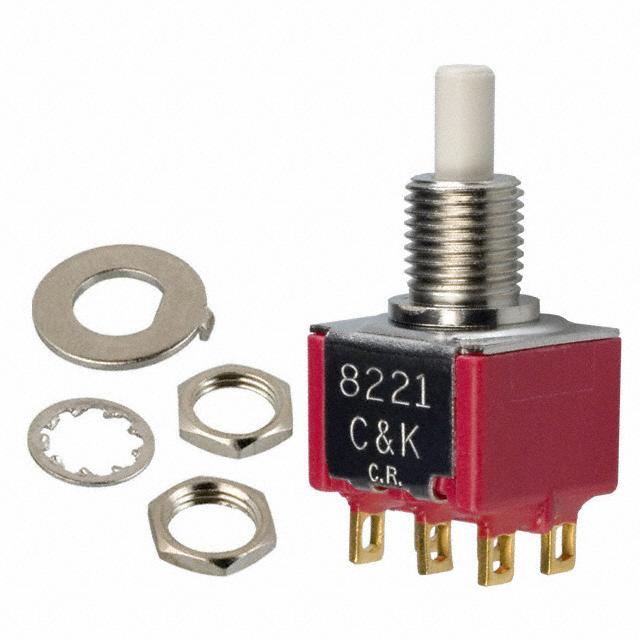

提供的附件包括:罩、框架、垫圈和安装螺母。
欧时:
DPDT panel mount pushbutton switch 1A
立创商城:
8221SHZGE
艾睿:
This classic 8221SHZGE push button switch from C&a;K Components will do exactly what you need it to do by turning your circuit on and off. It has a DPDT configuration. This device has a maximum current rating of 1 A @ 120VAC 28VDC. This push switch has an operating temperature range of -30 °C to 75 °C. The 8221SHZGE push switch has a solder lug termination style. This product is 12.7 mm long, 26.24 mm tall and 11.43 mm deep. The maximum AC voltage rating is 120 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
Switch, PNL-MNT, Pushbutton, 1A@120VAC OR 28VDC, DPDT, ON-MOM..
安富利:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Chip1Stop:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
TME:
Switch: push-button; Positions:2; DPDT; 1A/120VAC; 1A/28VDC; white
Verical:
Switch Push Button ON Mom DPDT Round Plunger 1A 120VAC 28VDC 0.4VA Momentary Contact Panel Mount Solder Lug Bulk
儒卓力:
**PUSHBU DPDT ON-MOM Solderlug **
MASTER:
Snap-acting Momentary Pushbutton Switches-60,000 make-and-break cycles at full load-1A @28V
Electro Sonic:
Snap-acting Momentary Pushbutton Switches-60,000 make-and-break cycles at full load-1A @28V
触点电镀 Gold
额定电压DC 28 V
额定电压AC 120 V
额定电流 1 A
绝缘电阻 1 GΩ
排数 2
触点类型 DPDT
易燃性等级 UL 94 V-0
针脚数 2
触点额定电流 1A @28VDC
额定电流Max 1A @120VAC, 28VDC
工作温度Max 75 ℃
工作温度Min -30 ℃
额定电压 120 VAC
额定电压DC Max 28 V
额定电压AC Max 120 V
接触电阻Max <50 mΩ
安装方式 Lug, Snap-In
封装 -
长度 12.7 mm
宽度 12.7 mm
高度 26.24 mm
脚长度 3.94 mm
封装 -
触点材质 Coin Silver
工作温度 -30℃ ~ 75℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509031
