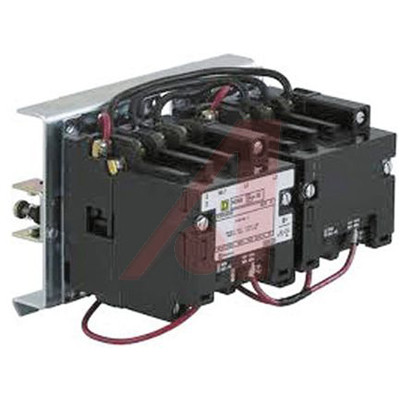

Contactor, Full Volt. Revrs'g, NEMA Size: 0, 18A, 3HP@200/230VAC - 5HP@460/575VAC
Class 8702 Type S reversing magnetic contactors are used for starting, stopping, and reversing AC motors where overload protection is separately provided. Class 8702 reversing contactors consist of two Class 8502 contactors mechanically and electrically interlocked. Open type devices, Sizes 0–5, are available in either horizontal or vertical arrangements. Sizes 00, 6, and 7 are available as horizontal only. Enclosed devices, Size 00–7, use horizontally arranged components. Type S reversing contactors are designed for operation at 600 Vac, 50–60 Hz.
* NEMA 4 and 4X stainless steel enclosures sizes 0–5 have a brushed finish. Sizes 6 and 7 are painted sheet steel and are rated NEMA 4 only
* Coil voltage code must be specified to order this product
* NEMA 7 and 9 bolted are not UL listed
* NEMA 12 enclosure may be field modified for outdoor non-corrosive and non-service-entrance-rated application
