8341163

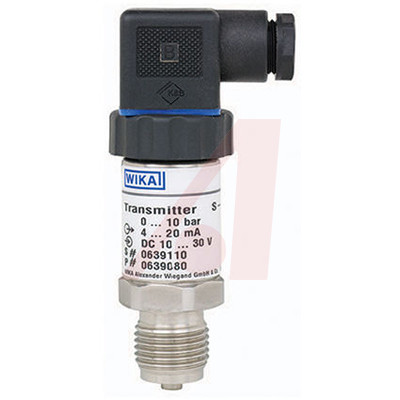

Gauge Pressure Sensor For Oil, 250psi Max Pressure, 10 - 30V dc, IP65

S-10 pressure transmitters are precision engineered to fit most industrial pressure measurement applications. The compact, rugged design makes these instruments suitable for applications including hydraulics and pneumatics, vacuum, test equipment, liquid level measurement, press control, compressor control pump protection and numerous other processing and control operations.

* Stainless Steel Pressure Connection for Wetted Parts

* Power Supply UB: 10 to 30 VDC 14-30 with Signal Output 0-10 VDC

* Signal Output: 4-20 mA, 2-Wire

* Electrical Connection: DIN EN 175301-803 DIN 43 650 with Plug Connector

* Accuracy: ≤0.25% of Span
