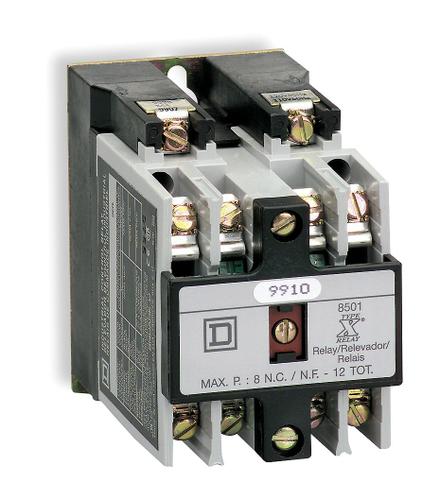

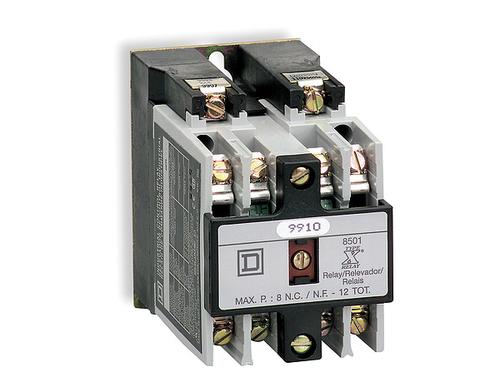

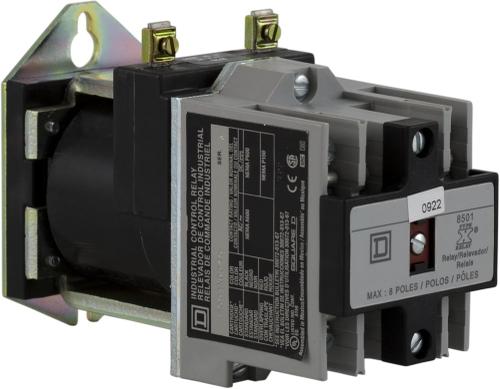

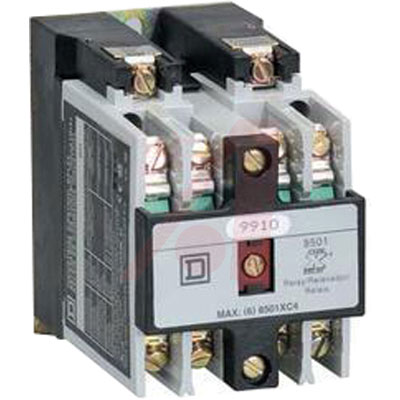

Relay, DC Control, 1 Phase, 4Pole, 4NO, 5A, 250VDC, Panel Mount, Screw Clamp
Class 8501 Type X Relays combine a rugged, heavy duty design with modular construction for greater flexibility. They are ideal for those applications where long life, high reliability and ease of maintenance are important. They Type X family offers a complete line of relays and accessories for all control applications.
**Features:**
* Specified in Major Automotive Plants
* Modular Design Provides Greater Versatility
* Reduction in Stock
* XUDO Version Ideal for Power Plant Applications
* Replaceable, Convertible Contacts
* Extremely Reliable Contacts
* 600 Volt, 10 Ampere Rating NEMA Type A600
* Plug-In Color-Coded Contact Cartridges
* Mechanical Tie Between Contact Cartridges
* 1 and 3 Minute Timing Relays
* 8-Pole Latching Relays
* DC Operated Relays
**Specifications:
* **Approvals UL Listed File: E78403 CCN NKCR — CSA Certified File: LR60905 Class 321103 — CE Marked
* Application Heavy-Duty Design with Modular Construction
* Terminal Type: Screw Clamp
* Relay Type: Control
* Phase: 1-Phase
* Maximum Voltage Rating: 250 VDC
* Mounting Type: Panel
* Features Replaceable, Highly Reliable Pure DC Power Plant; Available in Up-to-8-Poles; All Contact Poles Are Usable
* Contact Rating Standard: P600; Overlapping: P150
* Type X
