802F-075

Thermostat; PCB; 48/5VDC, 120VAC; 1/20mA; SPST; Radial Leaded; PCB Mount

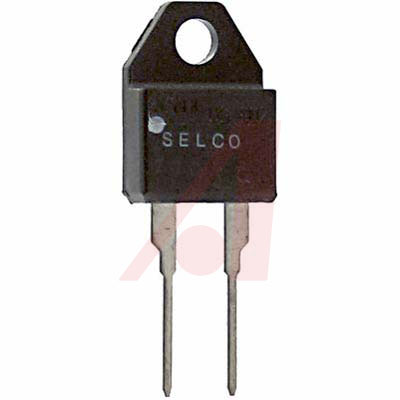

The Series 802 is a miniature bimetal thermostat. This PCB unit conforms to the International Y220/TO220 package. The snap-action contact is available normally open or normally closed at a factory set point range of 104°F-230°F.

.

*Electrical Ratings:** 48 VDC, 1 A resistive, 30,000 cycles, 120 VAC, 1 A, resistive, 30,000 cycles. 5 VDC, 20 mA, resistive, 100,000 cycles. **Temperature Ratings:** One fixed set point 40°C-120°C 104°F-248°F. **Differential:** 15°C 27°F. **Dielectric Strength:** 1,500 VAC/1 minute.

**Features:**

* Approvals: CSA and UL Recognized**

Applications:

.

*

* Computers

* Test Equipment

* Indicator Lights
