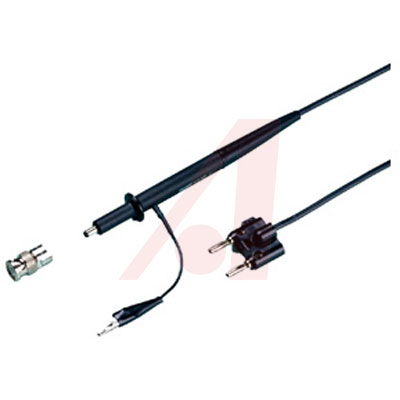

85RF

Probe; High Frequency; RF TO 5000MHz

The High Frequency Probe is designed to convert a DC voltmeter with a input impedance of 10M ohms into a high frequency 100kHz to 500Mhz RF voltmeter. Conversion from AC to DC is accomplished on a one-to-one basis includes a range of 0.25 to 30V rms. The probe"s DC output is calibrated to be equivalent to the rms value of a sine wave input.

**

.

*:

* Voltage Range: 0.25 to 30V rms

* Maximum Input Voltage: 30V rms, 200V dc

* AC to DC Ratio: 1:1

* Ratio Accuracy At 25 MHz and loaded with 10 M ohm Above 0.5V: ±0.5 dB | Below 0.5V: ±1.0 dB | Add ±0.2 dB in RF fields of 1 to 3 V/m

* Frequency Response Relative to 25 MHz: 100KHz to 100 MHz ±0.5 dB | 100 MHz to 200 MHz ±2.0 dB | 200 MHz to 500 MHz ±3.0 dB
