SMD Power Varistors WE-VS SeriesAfter a surge impulse the varistors works immediately in normal mode so there is no slip current Excellent absorption Operating temperature: -40 °C → +85 °C for the sizes 0402 to 0805,-40 °C → +125 °C for the sizes 1206 to 2220 Nickel barrier for lead-free soldering ### 标准Surge protection in accordance with EN-61000-4-5 ESD protection in accordance with EN-61000-4-2 Burst protection in accordance with EN-61000-4-4### 瞬态电压抑制器 径向金属氧化物变阻器
贴片式功率变阻器 WE-VS 系列
浪涌脉冲后,变阻器立即以正常模式工作,因此无滑动电流
极佳吸收性
工作温度:-40°C → +85°C(尺寸 0402 至 0805)、-40°C → +125°C(尺寸 1206 至 2220)
镍挡板,用于无铅焊接
### 标准
浪涌保护,符合 EN-61000-4-5 标准
ESD 保护,符合 EN-61000-4-2 标准
脉冲保护,符合 EN-61000-4-4 标准
得捷:
VARISTOR 24V 100A 0805
欧时:
### SMD Power Varistors WE-VS SeriesAfter a surge impulse the varistors works immediately in normal mode so there is no slip current Excellent absorption Operating temperature: -40 °C → +85 °C for the sizes 0402 to 0805,-40 °C → +125 °C for the sizes 1206 to 2220 Nickel barrier for lead-free soldering ### 标准Surge protection in accordance with EN-61000-4-5 ESD protection in accordance with EN-61000-4-2 Burst protection in accordance with EN-61000-4-4### 瞬态电压抑制器 径向金属氧化物变阻器
立创商城:
82550140
Newark:

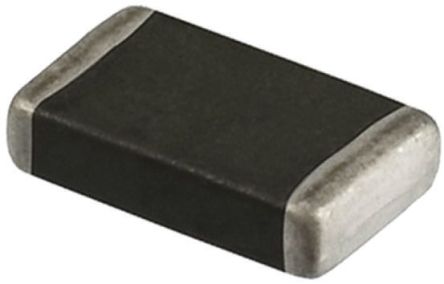

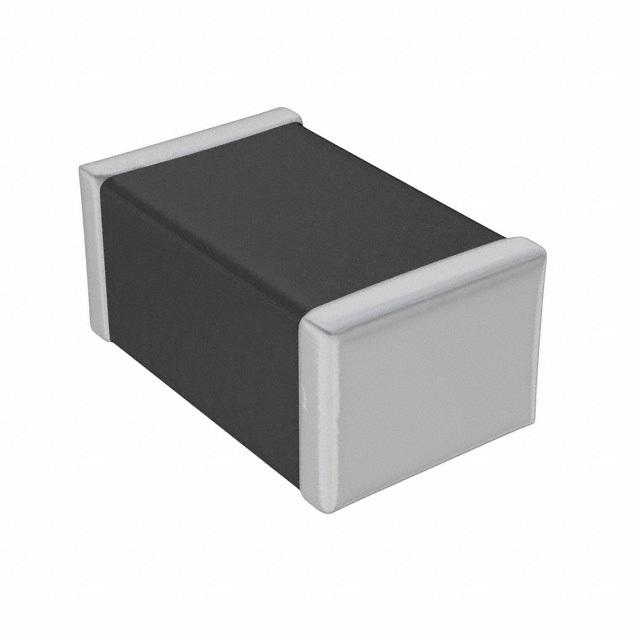

# WURTH ELEKTRONIK 82550140 SMD VARISTOR POWER 0805 14VRMS
额定电压DC 18 V
额定电压AC 14 V
电容 550 pF
电路数 1
钳位电压 40 V
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 18 V
额定电压AC Max 14 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.2 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
