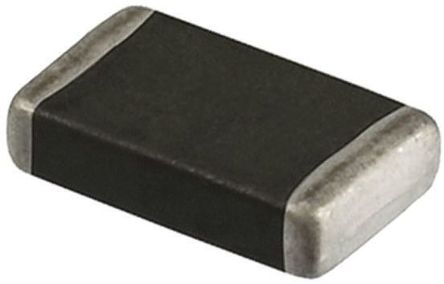

WURTH ELEKTRONIK 82537040 TVS压敏电阻, WE-VS系列, 4 V, 5.5 V, 21 V, 0402 [1005 公制], 静电保护器
贴片式功率变阻器 WE-VS 系列
浪涌脉冲后,变阻器立即以正常模式工作,因此无滑动电流
极佳吸收性
工作温度:-40°C → +85°C(尺寸 0402 至 0805)、-40°C → +125°C(尺寸 1206 至 2220)
镍挡板,用于无铅焊接
### 标准
浪涌保护,符合 EN-61000-4-5 标准
ESD 保护,符合 EN-61000-4-2 标准
脉冲保护,符合 EN-61000-4-4 标准
欧时:
### SMD Power Varistors WE-VS SeriesAfter a surge impulse the varistors works immediately in normal mode so there is no slip current Excellent absorption Operating temperature: -40 °C → +85 °C for the sizes 0402 to 0805,-40 °C → +125 °C for the sizes 1206 to 2220 Nickel barrier for lead-free soldering ### 标准Surge protection in accordance with EN-61000-4-5 ESD protection in accordance with EN-61000-4-2 Burst protection in accordance with EN-61000-4-4### 瞬态电压抑制器 径向金属氧化物变阻器
得捷:
VARISTOR 8V 20A 0402
立创商城:
82537040
e络盟:
WURTH ELEKTRONIK 82537040 TVS压敏电阻, WE-VS系列, 4 V, 5.5 V, 21 V, 0402 [1005 公制], 静电保护器
Newark:
# WURTH ELEKTRONIK 82537040 SMD VARISTOR POWER 0402 4VRMS
额定电压DC 5.5 V
额定电压AC 4 V
电容 220 pF
电路数 1
钳位电压 21 V
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 5.5 V
额定电压AC Max 4 V
安装方式 Surface Mount
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
封装公制 1005
封装 0402
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 Contains SVHC
