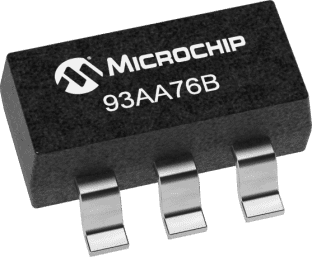

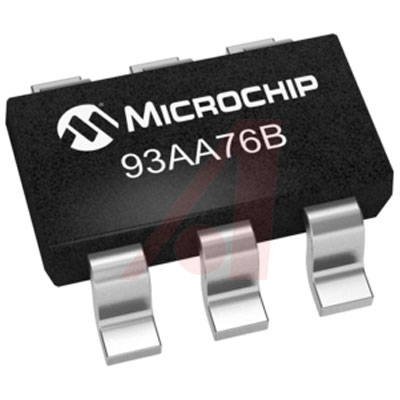

93AA76B/93C76B/93LC76B Microwire Serial EEPROM
s 93AA76B/93C76B/93LC76B family of devices are 8 Kbit Microwire Serial EEPROMs available in a variety of package, temperature and power supply variants.
### Features
### 16-bit x 512 Organisation
Self-Timed Erase/Write Cycles including Auto-Erase
Automatic Erase All ERAL Before Write All WRAL
Power-On/Off Data Protection Circuitry
Industry Standard 3-Wire Serial I/O
Device status signal during erase/write cycles
Sequential Read Function
1,000,000 Erase/Write Cycles
Data Retention >200 Years
### EEPROM 串行存取 - Microchip
频率 3.00 MHz
电源电压DC 5.00 V, 5.50 V max
时钟频率 3 MHz
存取时间 2.00 µs
内存容量 1000 B
存取时间Max 100 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8V ~ 5.5V
安装方式 Surface Mount
引脚数 6

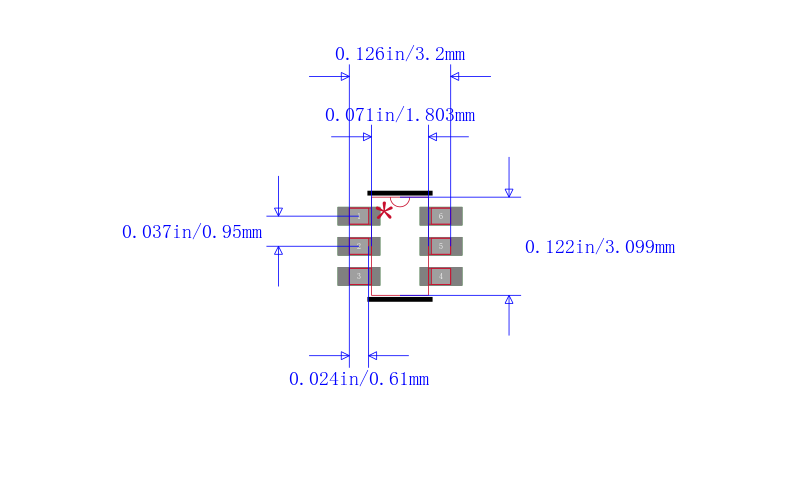

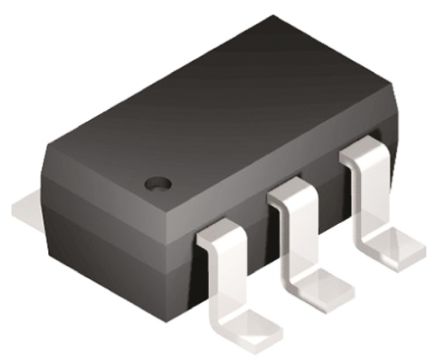

封装 SOT-23-6
长度 2.95 mm
宽度 1.63 mm
高度 1.1 mm
封装 SOT-23-6
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
