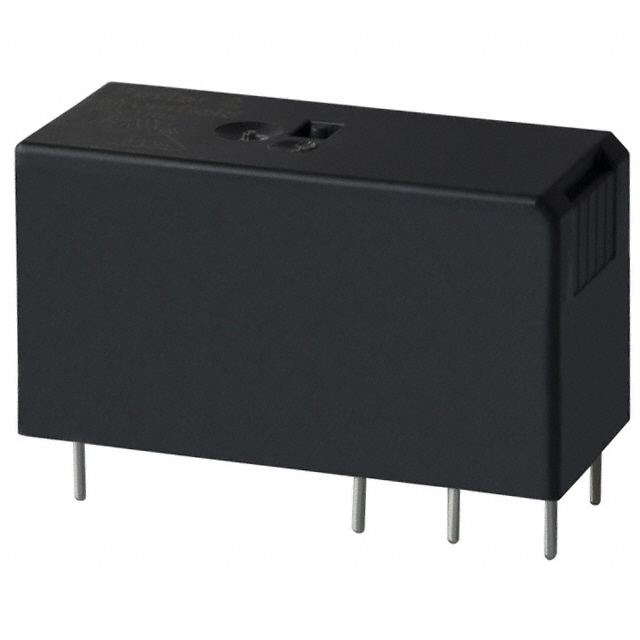

Power Relay 230VAC 15A DPDT29mm 12.7mm 15.7mm THT
RT425730
Product Highlights
RT2 Series

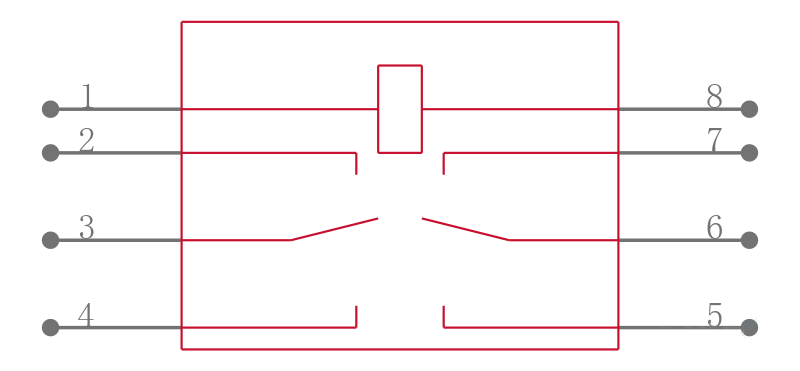

Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Input Voltage = 230 VAC
艾睿:
Power Relay 230VAC 15A DPDT29mm 12.7mm 15.7mm THT
安富利:
Electromechanical Relay DPDT 15A 230VAC 32.5KOhm Through Hole
Chip1Stop:
Electromechanical Relay DPDT 15A 230VAC 32.5KOhm Through Hole
Verical:
Electromechanical Relay 230VAC 32.5KOhm 15A DPDT 29x12.7x15.7mm THT Power Relay
MASTER:
RT425730
Powell:
Industrial Relays General Purpose
Online Components:
RT425730
Electro Sonic:
RT425730
触点电镀 Gold
额定电压AC 400 V
跌落电压 34.5 V
触点额定电流 15 A
线圈电压 230 VAC
线圈电流 3.2 mA
线圈电压AC 230 V
线圈电阻 32.5 KΩ
额定电流Max 15 A
额定功率Max 2 kVA
开关电流Max 15 a
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V

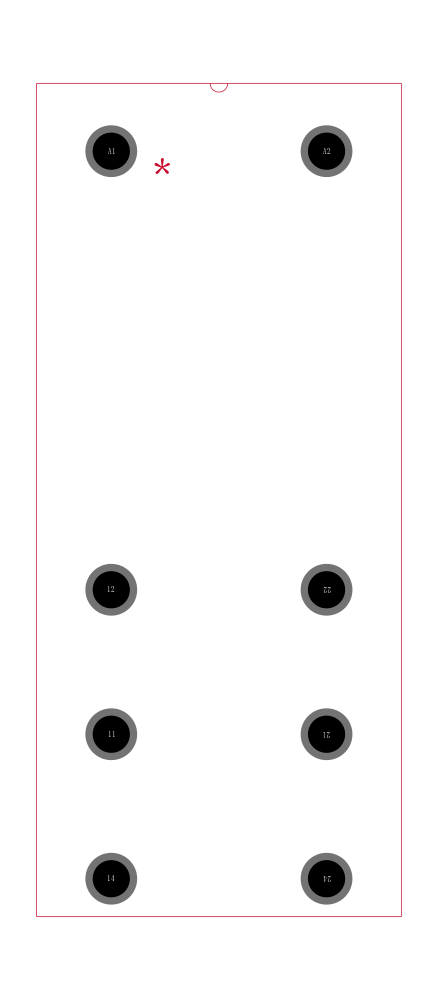

安装方式 Through Hole
引脚数 8
封装 DIP

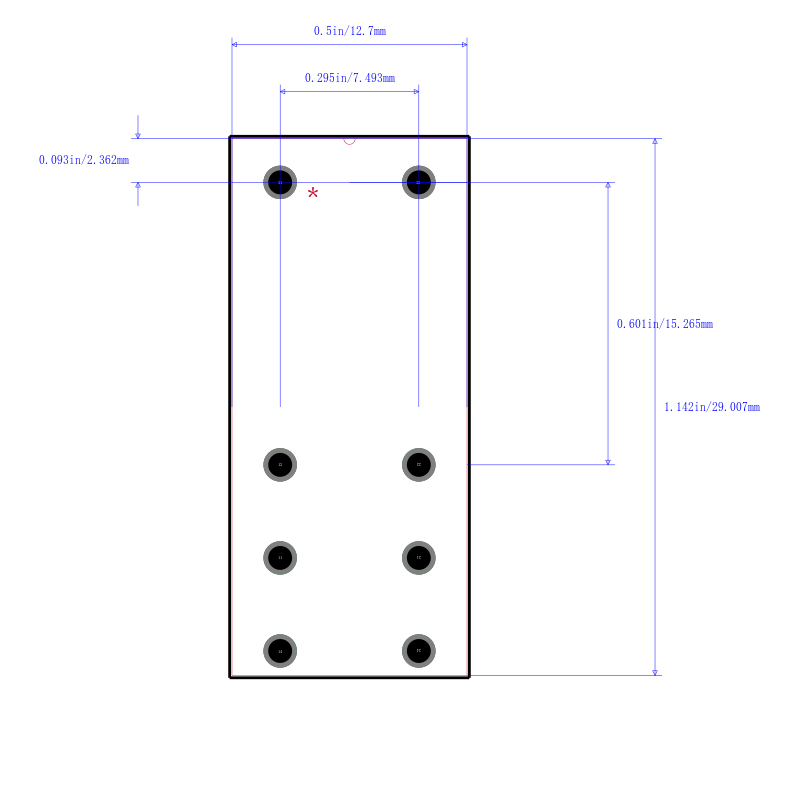

长度 29 mm
宽度 12.7 mm
高度 15.7 mm
封装 DIP
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536490080
