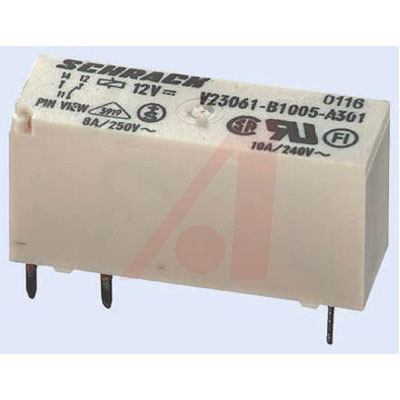

Relay: electromagnetic; SPDT; Ucoil:12VDC; 8A/240VAC; 8A/30VDC; 8A
Electromechanical Relay 12VDC 652Ohm 8A SPDT 30x10x15mm THT Power Relay
Product Highlights
MSR Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
V23061B1005A501=MINISTARKSTROM
艾睿:
Power Relay 12VDC 8A SPDT30x10x15mm THT
Allied Electronics:
SPDT PCB Mount Non-Latching Relay Through Hole, 12V dc
安富利:
Electromechanical Relay SPDT 8A 12VDC 652Ohm Through Hole
TME:
Relay: electromagnetic; SPDT; Ucoil:12VDC; 8A/240VAC; 8A/30VDC; 8A
Verical:
Electromechanical Relay 12VDC 652Ohm 8A SPDT 30x10x15mm THT Power Relay
MASTER:
Electromechanical Relay 12VDC 652Ohm 8A SPDT 30x10x15mm THT Power Relay
Powell:
Reinforced PCB Relays up to 8A
Online Components:
Electromechanical Relay 12VDC 652Ohm 8A SPDT 30x10x15mm THT Power Relay
Electro Sonic:
Electromechanical Relay 12VDC 652Ohm 8A SPDT 30x10x15mm THT Power Relay
额定电压AC 400 V
输入电压DC 12.0 V
跌落电压 1.20 V
触点额定电流 8 A
线圈电压 12 VDC
线圈电流 18.4 mA
线圈功率DC 220 mW
线圈电阻 652 Ω
额定电流Max 8 A
线圈电压DC 12 V
额定功率Max 2 KVA
开关电流Max 8 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 12 VDC
额定电压AC Max 400 V

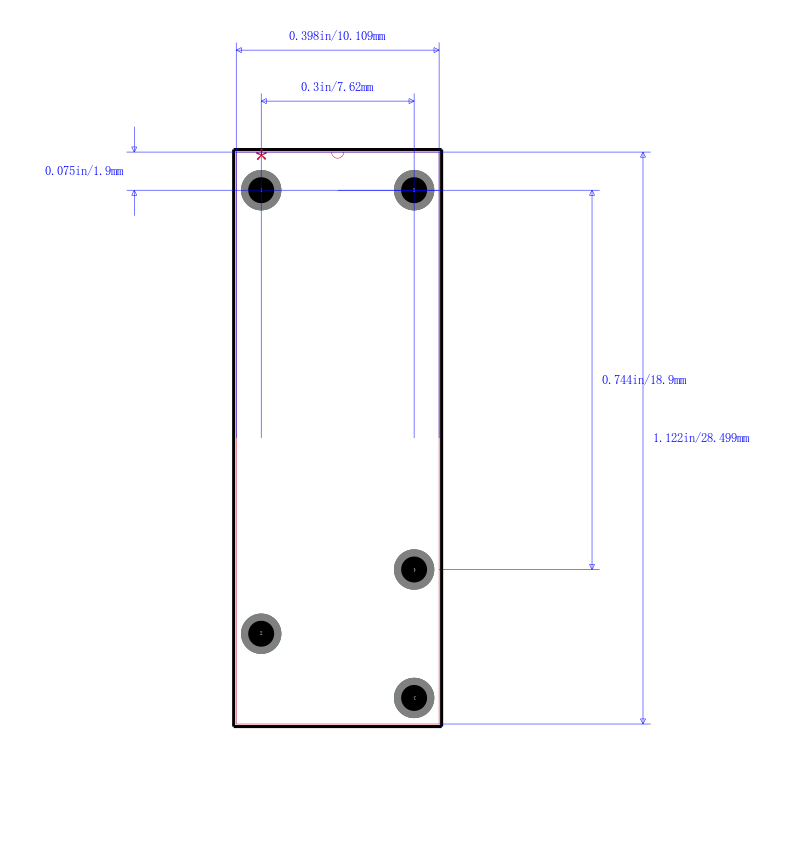

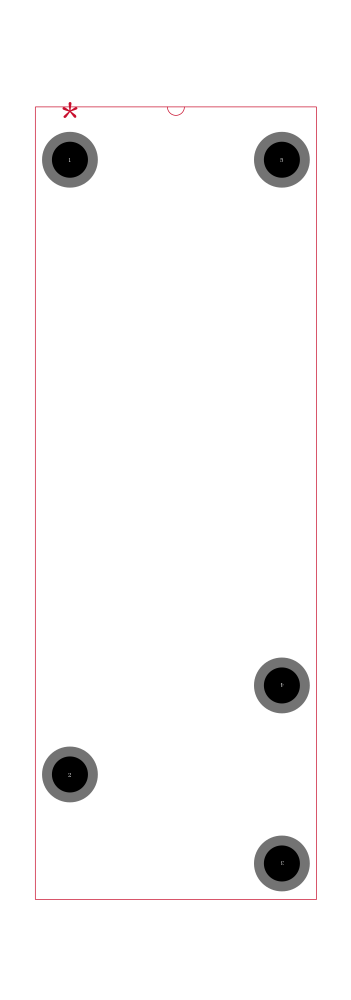

安装方式 Through Hole

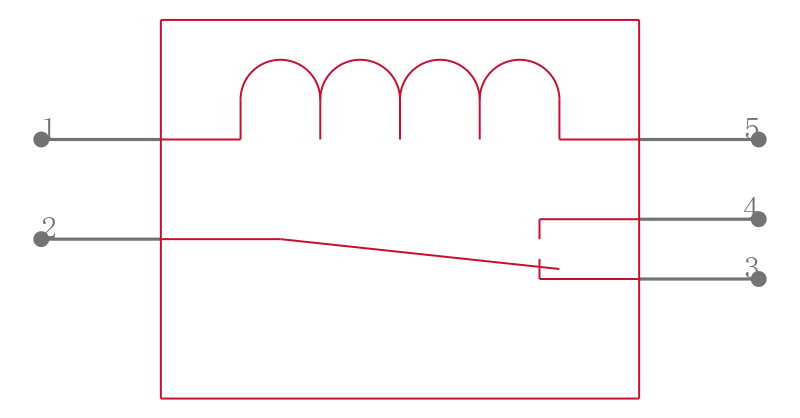

引脚数 5
高度 15 mm
触点材质 Silver Nickel
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bar
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
