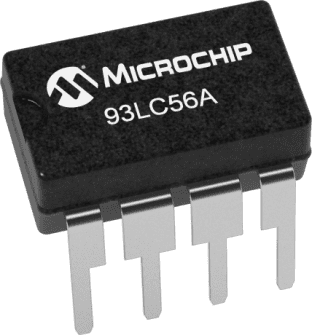

93LC56A-E/P

1K - 16K与Microwire兼容串行EEPROM 1K-16K Microwire Compatible Serial EEPROMs

Description

The Technology Inc. 93XX56A/B/C devices are 2K bit low voltage serial Electrically Erasable PROMs EEPROM. Word-selectable devices such as the 93AA56C, 93LC56C or 93C56C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 93AA56A, 93LC56A or 93C56A devices are available, while the 93AA56B, 93LC56B and 93C56B devices provide dedicated 16-bit communication. Advanced CMOS technology makes these devices ideal for low power, nonvolatile memory applications.

Features

• Low-power CMOS technology

• ORG pin to select word size for ‘56C version

• 256 x 8-bit organization ‘A’ ver. devices no ORG

• 128 x 16-bit organization ‘B’ ver. devices no ORG

• Self-timed ERASE/WRITE cycles including auto-erase

• Automatic ERAL before WRAL

• Power on/off data protection circuitry

• Industry standard 3-wire serial I/O

• Device Status signal READY/BUSY

• Sequential READ function

• 1,000,000 E/W cycles

• Data retention > 200 years

• Temperature ranges supported:

  - Industrial I -40°C to +85°C

  - Automotive E -40°C to +125°C
