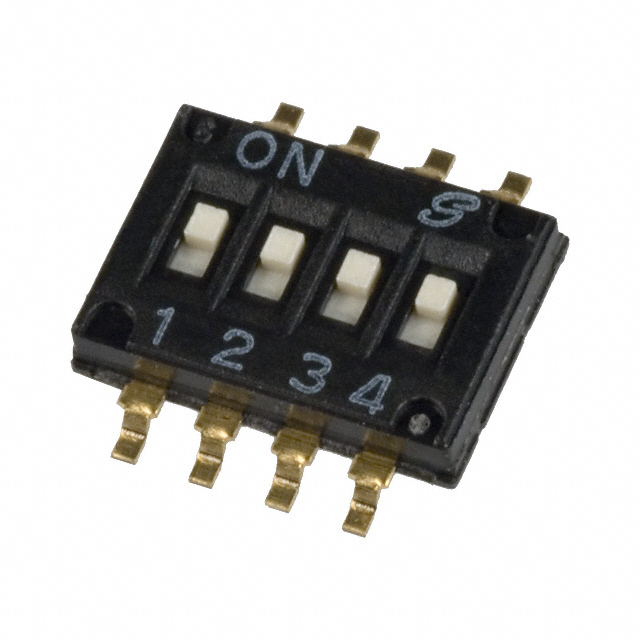

97C04ST

97 系列 半间距 单刀单掷 4 位置 顶部触动 表面贴装 DIP 开关

Half Pitch DIP Switch, 4 Positions

Series 97 requires half the board space of standard DIP switches. Process compatible to 255°C.

.

* Contact Rating:** 25 mA @ 25 VDC Switching. 100 mA @ 50 VDC non-switching. Mechanical life: 1000 cycles min. ** Contact Resistance:** 100 mΩ max. initial, 150 mΩ max. after Life. ** Terminals:** Brass with gold plating. "S" suffix in part number indicates top tape seal.

得捷:
SWITCH SLIDE DIP SPST 25MA 24V

贸泽:
DIP Switches / SIP Switches Half Pitch DIP 4 Pos Top Tape Seal

艾睿:
This 97C04ST dual in-line package switch from Grayhill can be easily customized and designed to be used on a printed circuit board. It has a SPST configuration. This device has a maximum current rating of 0.025 A @ 24VDC. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 97C04ST DIP switch has a gull wing termination style. This product is 6.3 mm long, 1.58 mm tall and 6.71 mm deep. This product&s;s terminal pitch is 1.27 mm. The maximum DC voltage rating is 24 VDC.

Allied Electronics:
Switch; DIP; 0.248 in. L x 0.177 in. W x 0.050 in. H; 4; 25 mA; 24 VDC; SPST

安富利:
Switch DIP ON OFF SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycle 1.27mm SMD Tube

Chip1Stop:
Switch DIP ON OFF SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

Verical:
Switch DIP ON OFF SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

Newark:
# GRAYHILL  97C04ST  DIP SWITCH

MASTER:
Switch DIP ON OFF SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube

Win Source:
SWITCH DIP HALF PITCH 4POS 24V

Electro Sonic:
Switch DIP ON OFF SPST 4 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
