Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC Gull Wing 10000Cycles 2.54mm SMD Tube
Popular rotary encoded DIP switches are available to fit most form factor needs with standard and right-angle through-hole mounting plus surface mount versions as well. Octal, BCD and Hexadecimal are well represented. Optional keyed index knobs are available for the extended shafts in the series as well.
艾睿:

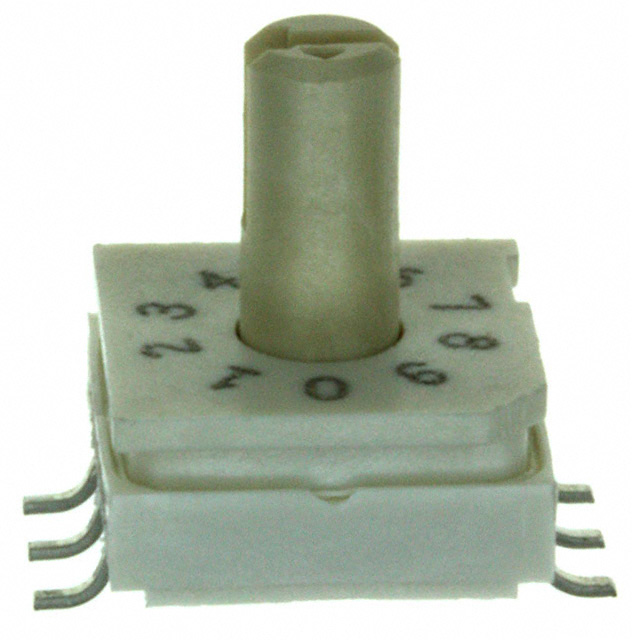

Does your printed circuit board need some type of electronic flow control? The 94HBB10WT dual in-line package switch, developed by Grayhill, is the component you need. This device has a maximum current rating of 0.03 A @ 30VDC. It has a SP10T configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 94HBB10WT DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. This product is 9.91 mm long, 11.94 mm tall and 12.7 mm deep. The maximum DC voltage rating is 30 VDC.
Allied Electronics:
Switch; Rotary; DIP; BCD; 10Pos; Gull Wing; .27 Ext Actuator; 0.1A; 50VDC
Jameco:
10 Position Standard Binary Coded Decimal BCD Rotary Switch
安富利:
Switch DIP SP10T 10 Shaft 0.03A 30VDC Gull Wing 10000Cycle 2.54mm SMD Tube
Chip1Stop:
Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC Gull Wing 10000Cycles 2.54mm SMD Tube
Verical:
Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC Gull Wing 10000Cycles 2.54mm SMD Tube
额定电压DC 30 V
额定电流 100 mA
针脚数 10
额定电流Max 0.03A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 50 VDC
额定电压DC Max 30 V
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 DIP
长度 9.91 mm
宽度 12.7 mm
高度 11.94 mm
封装 DIP
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
