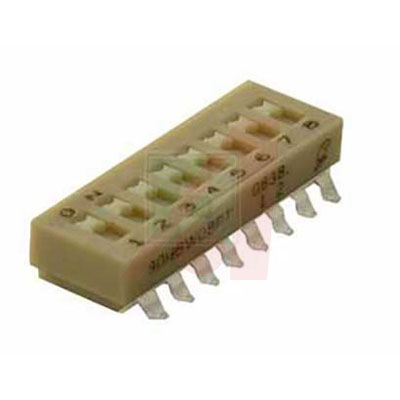

90HB 系列 薄型 单刀单掷 8 位置 表面贴装 DIP 开关
DIP SPST 8 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
贸泽:
DIP 开关/ SIP 开关 DIP Switch SPST low Prof GullWing 8 Pos
艾睿:
Use Grayhill&s;s 90HBW08PRT dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.1 A @ 6VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 90HBW08PRT DIP switch has a gull wing termination style. This product is 22.1 mm long, 4.83 mm tall and 10.03 mm deep. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC.
Allied Electronics:
Switch; DIP; 8 Pos. SPST; Slide; 0.10A; 30VDC; Gull wing term; Tape seal
安富利:
Switch DIP ON OFF SPST 8 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD T/R
Chip1Stop:
Switch DIP ON OFF SPST 8 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/Switch 2.54mm SMD T/R
Verical:
Switch DIP ON OFF SPST 8 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R
Newark:
# GRAYHILL 90HBW08PRT Slide Switch,STRAIGHT,SPST,ON-ON,Number Of Positions:8,SURFACE MOUNT Terminal
MASTER:
Switch DIP ON OFF SPST 8 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R
Electro Sonic:
Switch DIP ON OFF SPST 8 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD T/R
额定电压DC 30 V
额定电流 25 mA
针脚数 8
额定电流Max 0.1A @6VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 30 V
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 DIP

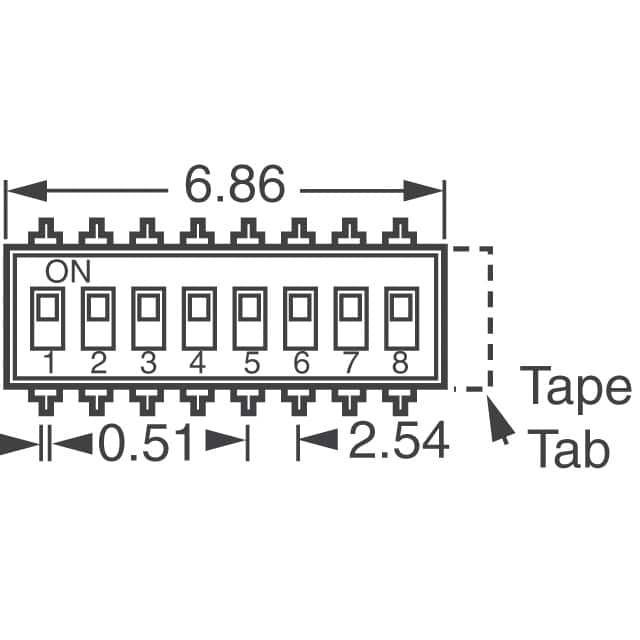

长度 22.1 mm
宽度 10.03 mm
高度 4.83 mm
封装 DIP
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
