94HBB16T

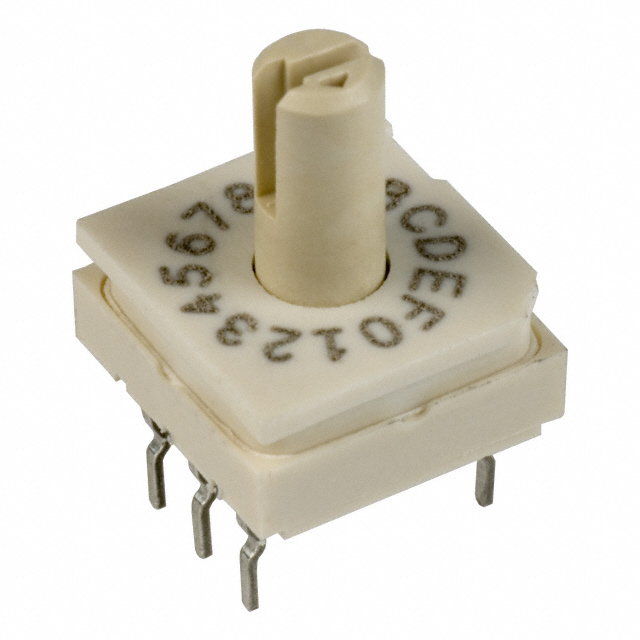

GRAYHILL  94HBB16T  旋转开关, DIP, 16位置, PCB安装

Popular rotary encoded DIP switches are available to fit most form factor needs with standard and right-angle through-hole mounting plus surface mount versions as well. Octal, BCD and Hexadecimal are well represented. Optional keyed index knobs are available for the extended shafts in the series as well.

e络盟:
旋转开关, DIP, 16位置, PCB安装

艾睿:
This 94HBB16T dual in-line package switch from Grayhill can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.03 A @ 30VDC. It has a SP16T configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 94HBB16T DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 9.91 mm long, 11.94 mm tall and 9.65 mm deep.

Allied Electronics:
Switch; DIP; CODED Rotary; 16 PositionS; STD THRU-HOLE MOUNTING; 0.27 Actuator

Jameco:
DIP Switch 16 Position 0.03 Amp @ 30 Volt Through Hole

安富利:
Switch DIP SP16T 16 Shaft 0.03A 30VDC PC Pins 10000Cycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP N.O./N.C. SP16T 16 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP N.O./N.C. SP16T 16 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  94HBB16T  Rotary DIP Switch, .27" Extended actuator, standard output, hex 16 position, thru-hole, RoHS Compliant

MASTER:
Switch DIP SP16T 16 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP SP16T 16 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
