DIP 开关/ SIP 开关 Half Pitch DIP 10 Pos Top Tape Seal
DIP SPST 10 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
贸泽:
DIP 开关/ SIP 开关 Half Pitch DIP 10 Pos Top Tape Seal
艾睿:

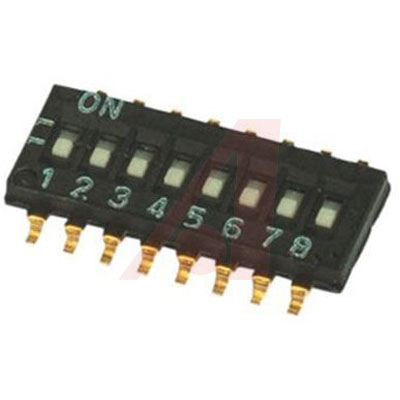

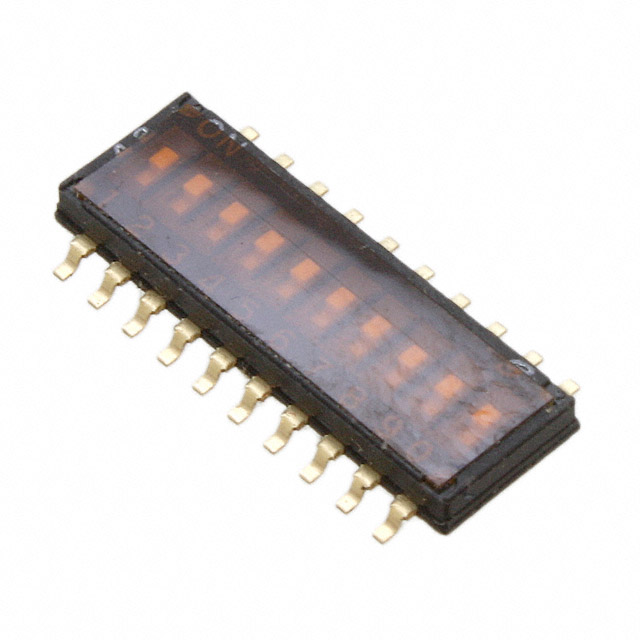

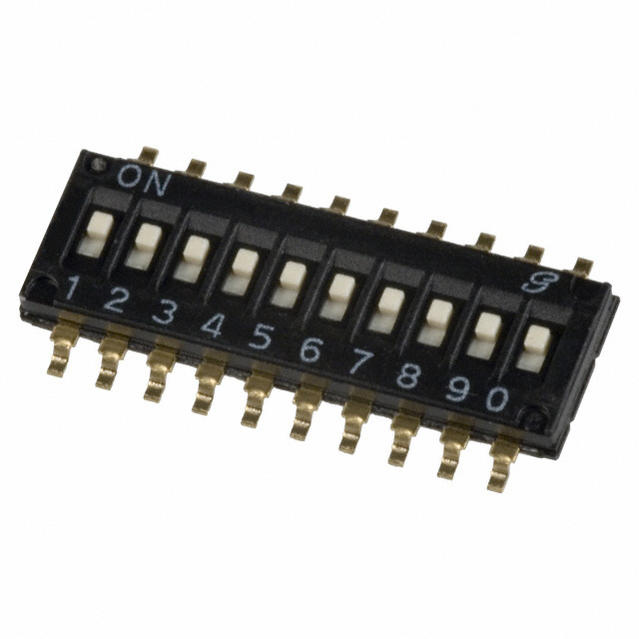

Add push button-type user control to your printed circuit board using the 97C10ST dual in-line package switch from Grayhill. This device has a maximum current rating of 0.025 A @ 24VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 97C10ST DIP switch has a gull wing termination style. This product is 13.92 mm long, 1.58 mm tall and 6.71 mm deep. The maximum DC voltage rating is 24 VDC. This product&s;s terminal pitch is 1.27 mm.
Allied Electronics:
Switch; DIP; HALF PITCH; 10 STATIONS
安富利:
Switch DIP ON OFF SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycle 1.27mm SMD Tube
Chip1Stop:
Switch DIP ON OFF SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
Verical:
Switch DIP ON OFF SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
Newark:
# GRAYHILL 97C10ST Slide Switch,STRAIGHT,SPST,ON-ON,Number Of Positions:10,SURFACE MOUNT Terminal
MASTER:
Switch DIP ON OFF SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
Electro Sonic:
Switch DIP ON OFF SPST 10 Recessed Slide 0.025A 24VDC Gull Wing 1000Cycles 1.27mm SMD Tube
额定电压DC 24 V
接触器类型 Standard
额定电流 25 mA
绝缘电阻 ≥100MΩ @100VDC
电容 5 pF
方向 Vertical
触点类型 SPST
针脚数 10
接触电阻 ≤100 MΩ
额定电流Max 0.025A @24VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 100 mΩ
安装方式 Surface Mount
封装 DIP
引脚间距 1.27 mm
长度 13.92 mm
宽度 6.71 mm
高度 1.58 mm
封装 DIP
引脚间距 1.27 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
