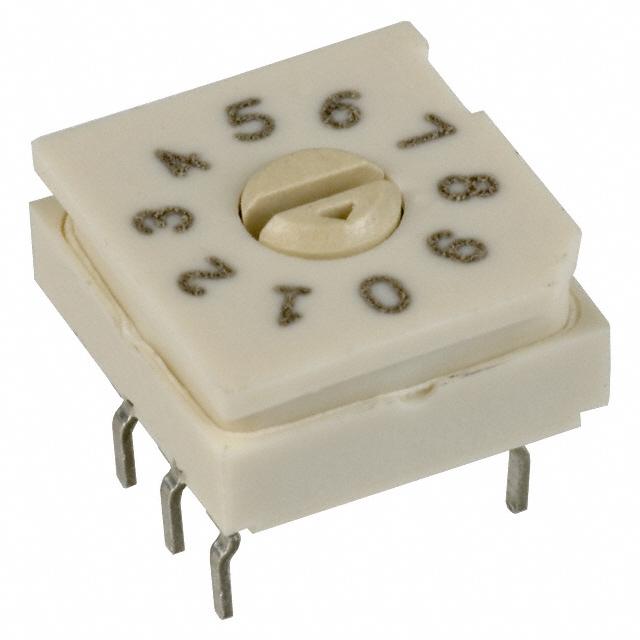

94HAB10T

GRAYHILL  94HAB10T  旋转编码开关, 94H系列, 通孔安装, 10路, 30 VDC, BCD, 30 mA

Popular rotary encoded DIP switches are available to fit most form factor needs with standard and right-angle through-hole mounting plus surface mount versions as well. Octal, BCD and Hexadecimal are well represented. Optional keyed index knobs are available for the extended shafts in the series as well.

贸泽:
编码式波段开关 Rotary DIP Switch Flush 10Pos

艾睿:
Use Grayhill&s;s 94HAB10T dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.03 A @ 30VDC. It has a SP10T configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 94HAB10T DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 9.91 mm long, 5.72 mm tall and 9.65 mm deep. This product&s;s terminal pitch is 2.54 mm.

Allied Electronics:
Switch; DIP; 0.390 in. L x 0.350 in. W x 0.225 in. H; 10; Rotary; Thru-Hole

Jameco:
DIP Switch 10 Position 0.03 Amp @ 30 Volt Flush Screwdriver

安富利:
Switch DIP SP10T 10 Flush Screwdriver 0.03A 30VDC PC Pins 10000Cycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP SP10T 10 Flush Screwdriver 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP N.O./N.C. SP10T 10 Flush Screwdriver 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  94HAB10T  Rotary Coded Switch, 94H Series, Through Hole, 16 Position, 30 VDC, BCD, 30 mA

MASTER:
Switch DIP SP10T 10 Flush Screwdriver 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP SP10T 10 Flush Screwdriver 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
