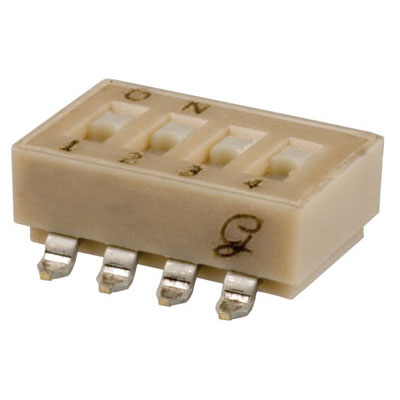

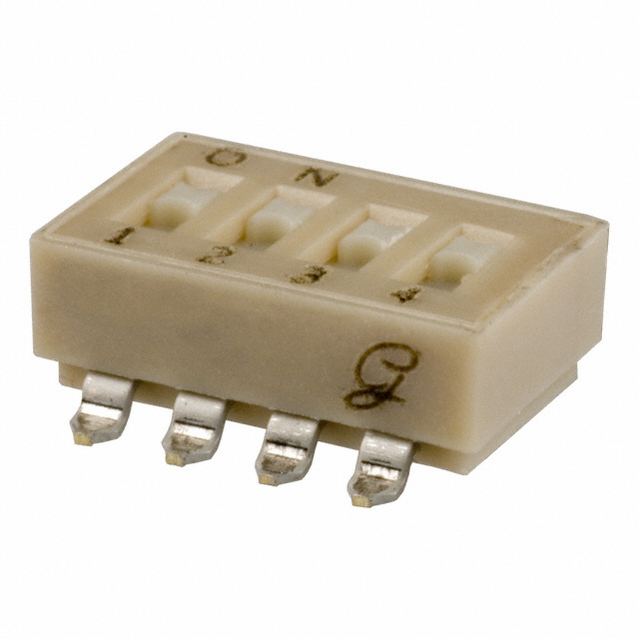

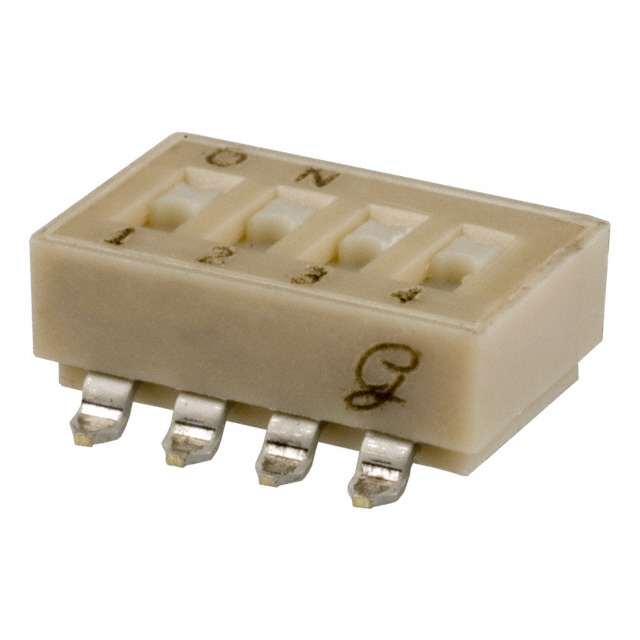

GRAYHILL 90HBW04PT DIP / SIP开关, 90系列, SPST, SMD, 4 电路, DIP密封, 6 VDC
薄型系列 90HB
与 SMT 组件兼容,包括回流和汽相
顶部密封,可耐受高压水清洗
最高处理温度 260 ºC
聚酰亚胺薄膜胶带密封
### 双在线
微型开关,配置和操作可选。 请注意,除非另有说明,否则这些开关不适于浸泡清洗。
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
欧时:
### 薄型系列 90HB与 SMT 组件兼容,包括回流和汽相 顶部密封,可耐受高压水清洗 最高处理温度 260 ºC 聚酰亚胺薄膜胶带密封 ### DIL 表面安装### 双在线开关微型开关,配置和操作可选。 请注意,除非另有说明,否则这些开关不适于浸泡清洗。
贸泽:
DIP 开关/ SIP 开关 DIP Switch SPST low Prof GullWing 4 Pos
e络盟:
DIP / SIP开关, 4 电路, 滑动式, SMD, SPST, 6 VDC, 100 mA
艾睿:
Look no further! The 90HBW04PT dual in-line package switch, developed by Grayhill, can allow you to control multiple different paths on a printed circuit. This device has a maximum current rating of 0.1 A @ 6VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 90HBW04PT DIP switch has a gull wing termination style. This product&s;s terminal pitch is 2.54 mm. This product is 11.9 mm long, 4.83 mm tall and 10.03 mm deep. The maximum DC voltage rating is 30 VDC.
Allied Electronics:
Switch, DIP, Surface MountABLE, 4 PositionS, 100 MA, 6 VDC
Jameco:
DIP Switch 4 Position On Off Single Pole 0.1 Amp @ 24 Volt Flush Slide
安富利:
Switch DIP ON OFF SPST 4 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD Tube
Chip1Stop:
Switch DIP ON OFF SPST 4 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Verical:
Switch DIP ON OFF SPST 4 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Newark:
# GRAYHILL 90HBW04PT DIP Switch, 90 Series, SPST, DIP Sealed, SMD, 100 mA, 6 VDC
MASTER:
Switch DIP ON OFF SPST 4 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Electro Sonic:
Switch DIP ON OFF SPST 4 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
触点电镀 Gold
额定电压DC 30 V
接触器类型 Standard
额定电流 3 A
绝缘电阻 1000 MΩ
电容 2 pF
方向 Vertical
触点类型 SPST
电路数 4
易燃性等级 UL 94 V-0
针脚数 4
接触电阻 20 mΩ
触点额定电流 100mA @6VDC
额定电流Max 0.1A @6VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 24 V
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 DIP
引脚间距 2.54 mm
长度 11.9 mm
宽度 10.03 mm
高度 4.83 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
材质 Thermoplastic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
90HBW04PT Grayhill | 当前型号 | 当前型号 |
90HBW04PRT Grayhill | 类似代替 | 90HBW04PT和90HBW04PRT的区别 |
SD04H0SBR C&K Components | 功能相似 | 90HBW04PT和SD04H0SBR的区别 |
SD04H1SB C&K Components | 功能相似 | 90HBW04PT和SD04H1SB的区别 |
