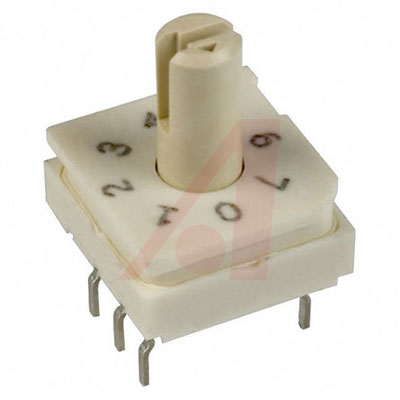

94H 系列 8 位置 通孔 编码 旋转 DIP 开关
The 94H series Rotary Coded DIP Switch is available in surface-mount or thru-hole styles. The actuation types are available in octal 8, binary coded decimal 10 or hexadecimal 16 codes with either standard or complement output. Standard code outputs have natural colour rotors complements in a contrasting colour.
- .
- Sealed construction no tape seal required
- .
- Surface mount or thru-hole style
- .
- Tube or tape and reel packaging
- .
- Octal, BCD and hexadecimal code
- .
- In standard or complement
- .
- Standard and right-angle mount
- .
- Flush or extended actuators
- .
- Gold-plated contacts
- .
- All switches are continuous rotation
额定电压DC 30 V
额定电流 100 mA
绝缘电阻 ≥5000 MΩ
方向 Vertical
针脚数 8
接触电阻 ≤50 MΩ
开断电压 30.0 V
开关电流 30 mA
额定电流Max 0.03A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 50 VDC
额定电压DC Max 30 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚数 3
封装 DIP
引脚间距 2.54 mm
长度 9.91 mm
宽度 9.65 mm
高度 11.94 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
材质 Plastic
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
