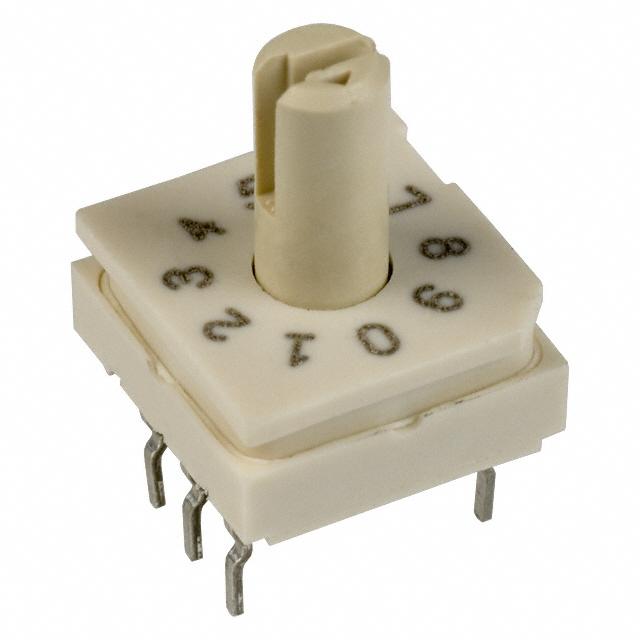

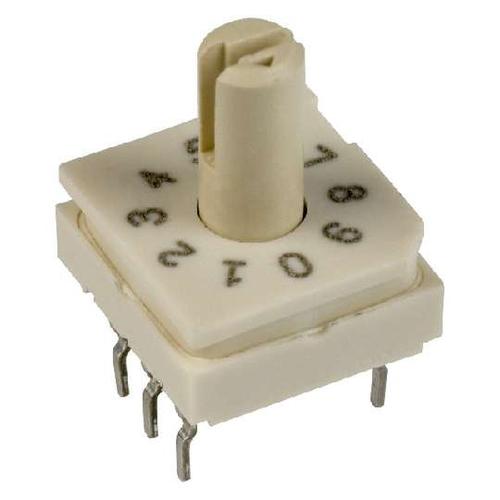

94HBB10T

27" 突出式 操作杆 BCD 10 位置 通孔 旋转 DIP 开关

Popular rotary encoded DIP switches are available to fit most form factor needs with standard and right-angle through-hole mounting plus surface mount versions as well. Octal, BCD and Hexadecimal are well represented. Optional keyed index knobs are available for the extended shafts in the series as well.

艾睿:
This 94HBB10T dual in-line package switch from Grayhill can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.03 A @ 30VDC. It has a SP10T configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 94HBB10T DIP switch has a PC pin termination style. This product is 9.91 mm long, 11.94 mm tall and 9.65 mm deep. The maximum DC voltage rating is 30 VDC. This product&s;s terminal pitch is 2.54 mm.

Allied Electronics:
Switch, DIP, CODED Rotary, 10 PositionS, STD THRU-HOLE MOUNTING, 0.27 Actuator

Jameco:
DIP Switch 10 Shaft 0.03 Amp 30 Volt Pc Pins 10000 Cycle 2.54mm Through Hole Tube

安富利:
Switch DIP SP10T 10 Shaft 0.03A 30VDC PC Pins 10000Cycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  94HBB10T  Rotary DIP Switch, .27" Extended actuator, standard output, BCD 10 position, thru-hole, RoHS Compliant

MASTER:
Switch DIP SP10T 10 Knob 0.03A 30VDC Gull Wing 10000Cycles 2.54mm SMD Tube

Electro Sonic:
Switch DIP SP10T 10 Knob 0.03A 30VDC Gull Wing 10000Cycles 2.54mm SMD Tube
