9760-14概述

AMPHENOL INDUSTRIAL  9760-14  防尘盖/罩, Dust Cap, 97 Series Standard Circular Receptacle, Shell Size 14, 金属主体

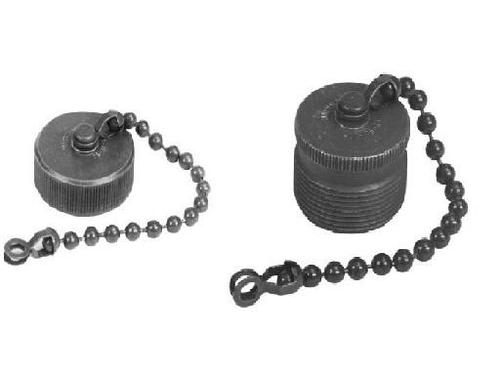

The is a Dust Cap with stainless steel beaded chain, cadmium olive drab finish. Suitable for 97 series standard circular receptacles have internal threads and are used on MS3102, MS3101 and MS3100 receptacles, size-14/14S shell. It is provides protection against live circuits and keep out dirt and dust when connector is not in use. A soft rubber disc seats on the connector shell, forming a water-tight joint.

9760-14中文资料参数规格
技术参数

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Solder Lug

外形尺寸

长度 11.1 mm

物理参数

颜色 Gray, Olive

材质 Metal

工作温度 -55℃ ~ 125℃

外壳材质 Metal

其他

产品生命周期 Active

制造应用 Automotive, Robotics, Maintenance & Repair, Commercial, , 国防, 商业, 机器人, 军用与航空, 自动化与过程控制, 传感与仪器, 维护与修理, 车用, 医用

符合标准

RoHS标准 Non-Compliant

军工级 Yes

数据手册

在线购买9760-14
型号: 9760-14
制造商: Amphenol 安费诺
描述:AMPHENOL INDUSTRIAL  9760-14  防尘盖/罩, Dust Cap, 97 Series Standard Circular Receptacle, Shell Size 14, 金属主体
