9-1437652-5

Buchanan- 6位置 9.53 mm 单排 三栅栏 端子条- 6PCV-06-006

Mini Feed-Through 15 mm DIN Rail, Fuse Blocks, 25 A Current Rating

** Material** : ** Terminals** : Bright acid tin over copper alloy. ** Screws** : #6-32 steel, zinc plating with clear chromate coating. Wire clamping screws and binding head screws with undercut available.

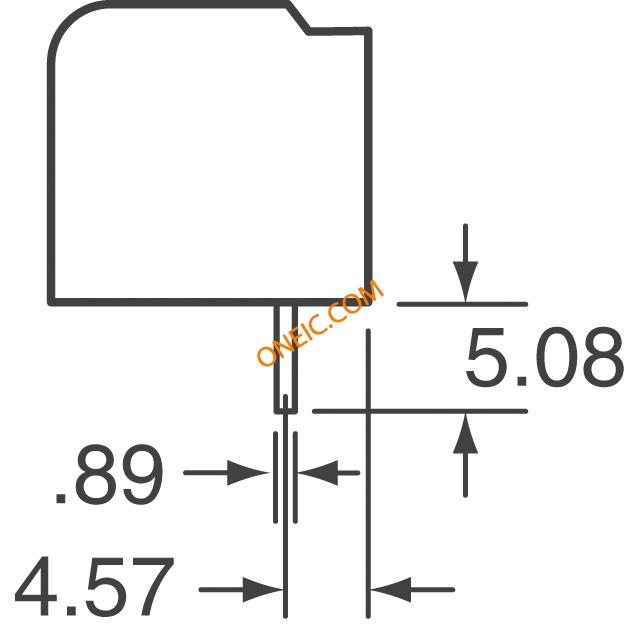

Printed circuit pin 5.08 [0.200] terminal style. Steel screw material. Bright zinc/chrome screw plate. RoHS/ELV compliant, CSA certified, UL recognized.

得捷:
6PCV-06-006=6PCV ASSEMBLY

艾睿:

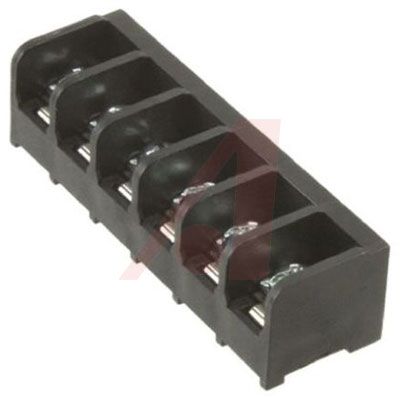

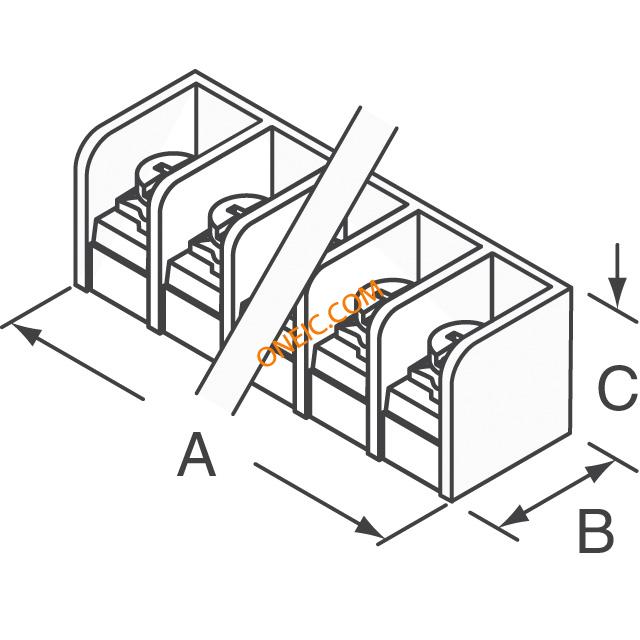

This barrier strip 9-1437652-5 PCB terminal block from TE Connectivity will join multiple circuits by connecting to the bare wire. Its pitch is 9.53 mm. It has a straight body orientation. This is a 1-row connector. 9-1437652-5 is housed in thermoplastic. Its wire is 12-22 AWG. It uses the solder termination method. This product is 58.69 mm long, 15.87 mm tall and 17.8 mm deep.

Allied Electronics:
Conn; Term Strip; Barrier; 6Pole; 9.53mmPitch; SnglRow; 22-12; Series #6; 25A; 300V

Jameco:
Connector Barrier Strip

Chip1Stop:
Conn Barrier Strip 6 POS 9.53mm Solder ST Thru-Hole

MASTER:
PCB Mount Barrier Terminal Block - 9.53 mm - 1 Row - 6 Positions - 22 AWG - 12 AWG - 10 A.

Powell:
Barrier Style Terminal Blocks

Online Components:
6PCV-06-006=6PCV ASSEMBLY

Electro Sonic:
PCB Mount Barrier Terminal Block - 9.53 mm - 1 Row - 6 Positions - 22 AWG - 12 AWG ...
