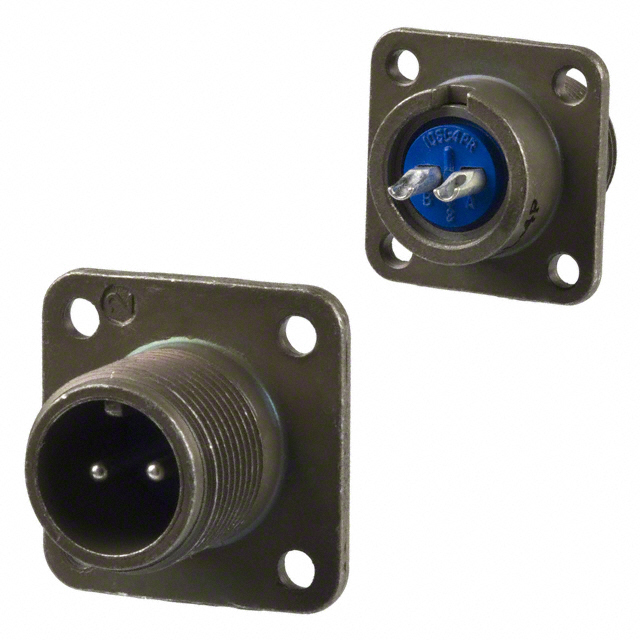

AMPHENOL INDUSTRIAL 97-3102A-10SL-4P 圆形连接器, 尺寸10SL, 2路, 盒式
2 针位圆形 插座，公形引脚 焊杯
得捷:
CONN RCPT MALE 2P SILV SLDR CUP
艾睿:
Conn Cylindrical Circular PIN 2 POS Solder ST Box Mount 2 Terminal 1 Port Automotive
TME:
Connector: military; Series:97; socket; male; PIN:2; silver plated
Verical:
Conn Cylindrical Circular PIN 2 POS Solder ST Box Mount 2 Terminal 1 Port Automotive
Newark:
# AMPHENOL INDUSTRIAL 97-3102A-10SL-4P Circular Connector, 97 Series, Box Mount Receptacle, 2 Contacts, Solder Pin, Threaded, 10SL-4
Online Components:
Conn Cylindrical Circular PIN 2 POS Solder ST Box Mount 2 Terminal 1 Port Automotive
Electro Sonic:
Conn Circular PIN 2 POS Solder ST Box Mount 2 Terminal 1 Port Automotive Medical
触点数 2
极性 Male
线规 16.0 AWG
触点电镀 Silver
额定电压DC 700 V
额定电流 13 A
针脚数 2
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 500VAC, 700VDC
安装方式 Solder, Panel, Box
引脚数 2
封装 Metal
高度 25.4 mm
封装 Metal
外壳颜色 Olive Drab
颜色 Olive
触点材质 Brass, Copper Alloy
绝缘材质 Plastic
工作温度 -55℃ ~ 125℃
外壳材质 Aluminum
产品生命周期 Active
包装方式 Bulk
制造应用 汽车级，工业级
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
军工级 Yes
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
97-3102A-10SL-4P Amphenol 安费诺 | 当前型号 | 当前型号 |
97-3102A-10SL-4P946 安费诺 | 完全替代 | 97-3102A-10SL-4P和97-3102A-10SL-4P946的区别 |
MS3102A10SL-4P 安费诺 | 类似代替 | 97-3102A-10SL-4P和MS3102A10SL-4P的区别 |
97-3102A10SL-4P 安费诺 | 类似代替 | 97-3102A-10SL-4P和97-3102A10SL-4P的区别 |
