Electromechanical Relay 3PST-NO/3PST-NC 8A 110VDC 10.08KΩ Through Hole
V23050-A1110-A533
Product Highlights
Safety Relay SR6
V23050 Series
DC Actuating System

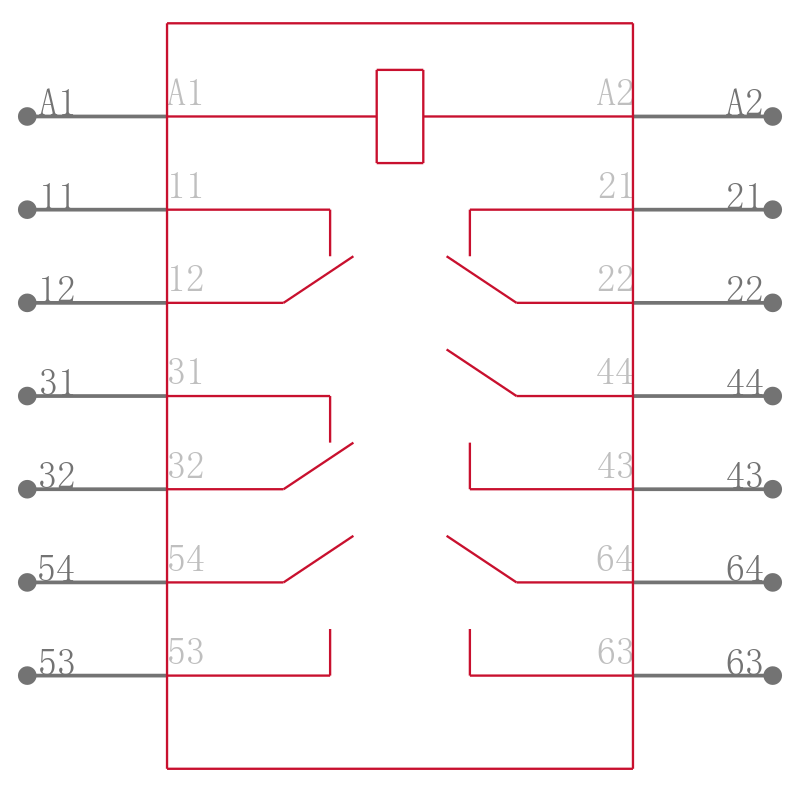

Contact Arrangement = 3 Form A & 3 Form B, 3PST-NO & 3PST-NC, 3 N/O & 3 N/C
Contact Current Rating = 8 Amps.
艾睿:
Electromechanical Relay 110VDC 10.08KOhm 8A 3PST-NO/3PST-NC 55x16.5x16.5mm THT Safety Relay
安富利:
Electromechanical Relay 3PST-NO/3PST-NC 8A 110VDC 10.08KOhm Through Hole
MASTER:
Power Relay - 3PST-NO - 3PST-NC - 110 VDC - 8 A - SR6 Series - Through Hole - Non Latching.
Powell:
EMG Safety Relays
Online Components:
V23050-A1110-A533
Electro Sonic:
Power Relay - 3PST-NO - 3PST-NC - 110 VDC - 8 A - SR6 Series - Through Hole - Non ...
输入电压DC 110 V
触点类型 3PST-NO
触点额定电流 8.00 A
线圈电压 110 V
线圈电流 10.91 mA
线圈功率DC 1.20 mW
线圈电阻 10.08 KΩ
额定电流Max 8 A
线圈电压DC 110 V
额定功率Max 2 kVA
工作温度Max 70 ℃
工作温度Min -25 ℃
额定电压AC Max 400 V
安装方式 PCB
引脚数 14
高度 16.5 mm
触点材质 Silver Tin Oxide
工作温度 -25℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
