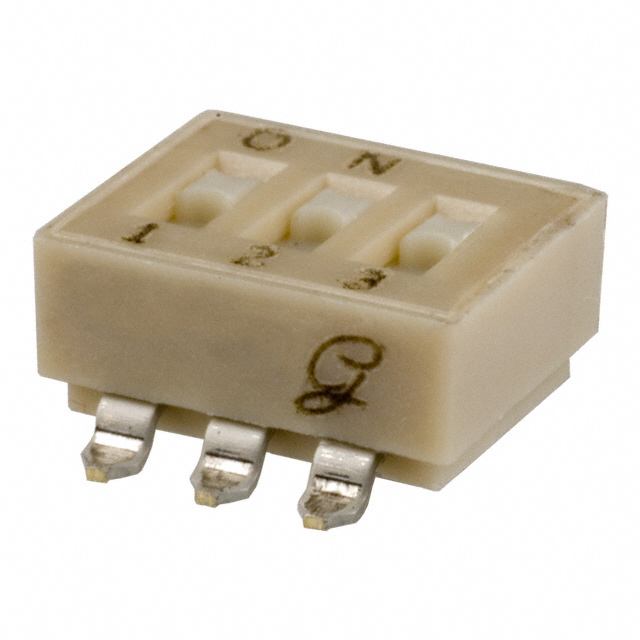

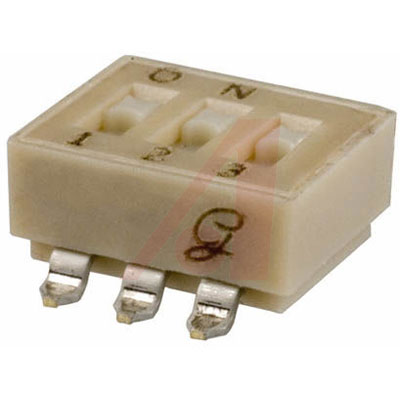

90HB 系列 薄型 单刀单掷 3 位置 表面贴装 DIP 开关
DIP SPST 3 位置 表面贴装型 滑动式(标准) 触动器 25mA 24VDC
得捷:
SWITCH SLIDE DIP SPST 25MA 24V
贸泽:
DIP 开关/ SIP 开关 DIP Switch SPST low Prof GullWing 3 Pos
艾睿:
Switch DIP ON OFF SPST 3 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Allied Electronics:
Switch, DIP, Surface MountABLE, 3 PositionS, 100 MA, 6 VDC
安富利:
Switch DIP ON OFF SPST 3 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycle/SwitchCycle 2.54mm SMD Tube
Chip1Stop:
Switch DIP ON OFF SPST 3 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Verical:
Switch DIP ON OFF SPST 3 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Newark:
# GRAYHILL 90HBW03PT DIP Switch, SPST, low profile, gull wing, 3 position, polyimide seal, RoHS Compliant
MASTER:
Switch DIP ON OFF SPST 3 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
Electro Sonic:
Switch DIP ON OFF SPST 3 Recessed Slide 0.1A 30VDC Gull Wing 2000Cycles/SwitchCycles 2.54mm SMD Tube
额定电压DC 30 V
接触器类型 Standard
额定电流 100 mA
绝缘电阻 ≥5000 MΩ
电容 2 pF
方向 Vertical
触点类型 SPST
针脚数 3
接触电阻 ≤20 MΩ
额定电流Max 0.1A @6VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 30 V
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 DIP
引脚间距 2.54 mm
长度 9.40 mm
宽度 10.03 mm
高度 4.83 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
90HBW03PT Grayhill | 当前型号 | 当前型号 |
90HBW03P Grayhill | 完全替代 | 90HBW03PT和90HBW03P的区别 |
90HBW03PRT Grayhill | 类似代替 | 90HBW03PT和90HBW03PRT的区别 |
ADE03S 泰科 | 类似代替 | 90HBW03PT和ADE03S的区别 |
