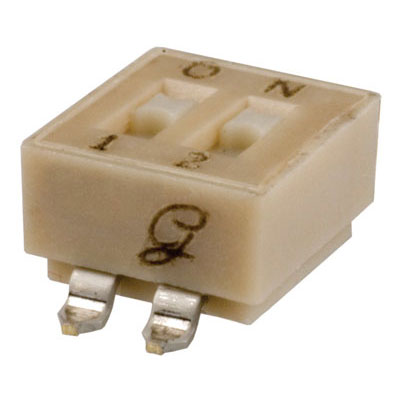

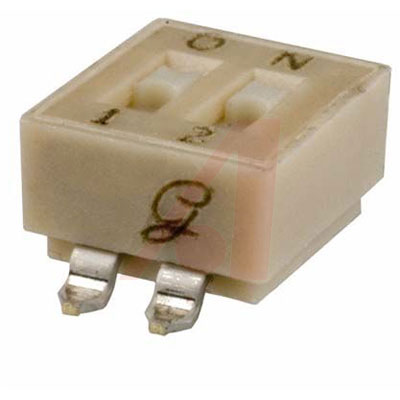

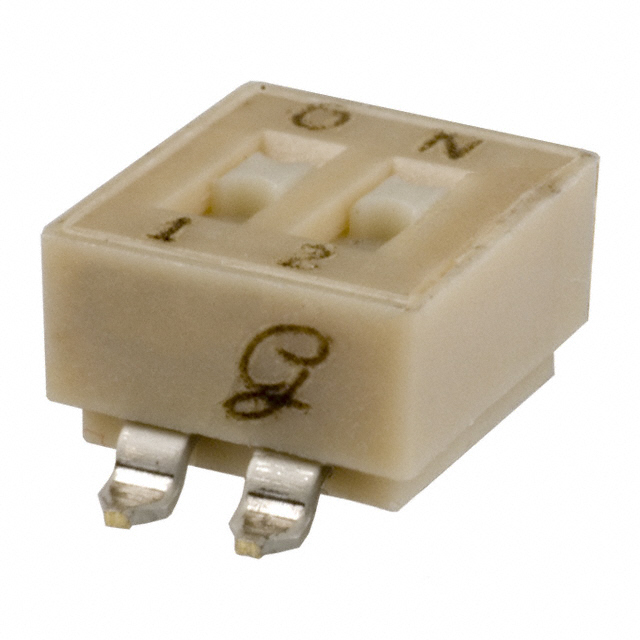

90HB 系列 薄型 单刀单掷 2 位置 表面贴装 DIP 开关
The 90HB series low-profile DIP Switch compatible with SMT assembly, including infrared reflow and vapour-phase, it features consistent high contact pressure is achieved with a reliable spring and ball contact system. It is suitable for use with telecommunications, computer motherboards and remote control frequency setting applications.
- .
- 2000 Life cycles
- .
- Top actuated recessed slide actuation
- .
- Brass, gold-plate over nickel barrier shorting member ball
- .
- Copper alloy, gold-plate over nickel barrier base contacts
- .
- Copper alloy, matte tin-plated over nickel barrier terminals
- .
- UL94V-O Flammability rated non-conductive thermoplastic parts
- .
- -40 to +85°C Operating temperature
额定电压DC 30 V
接触器类型 Standard
额定电流 0.025 A
绝缘电阻 5000 MΩ
电容 2 pF
方向 Vertical
触点类型 SPST
电路数 2
针脚数 2
接触电阻 100 mΩ
额定电流Max 0.1A @6VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 24 VDC
额定电压DC Max 30 V
接触电阻Max 20 mΩ
安装方式 Surface Mount
封装 DIP
引脚间距 2.54 mm
长度 6.9 mm
宽度 10.03 mm
高度 4.83 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, Communications & Networking, Computers & Computer Peripherals
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
