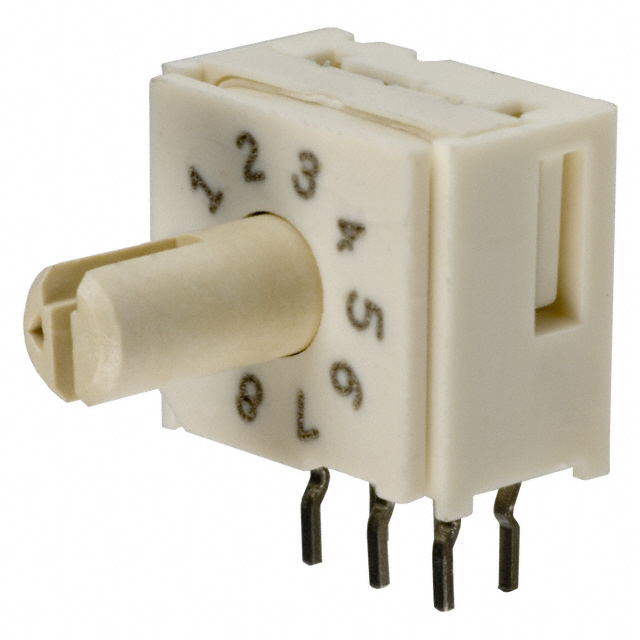

94HBB10RAT

94H 系列 10 位置 直角 通孔 编码 旋转 DIP 开关

Popular rotary encoded DIP switches are available to fit most form factor needs with standard and right-angle through-hole mounting plus surface mount versions as well. Octal, BCD and Hexadecimal are well represented. Optional keyed index knobs are available for the extended shafts in the series as well.

艾睿:
By acting as a series of switches, the 94HBB10RAT dual in-line package switch from Grayhill is the ideal component for use on a printed circuit board. This device has a maximum current rating of 0.03 A @ 30VDC. It has a SP10T configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 94HBB10RAT DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 10.92 mm long, 10.16 mm tall and 14.02 mm deep. The maximum DC voltage rating is 30 VDC.

Allied Electronics:
Switch, DIP, CODED Rotary, 10 PositionS, RIGHT ANGLE MOUNTING, 0.27 Actuator

安富利:
Switch DIP SP10T 10 Shaft 0.03A 30VDC PC Pins 10000Cycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP N.O./N.C. SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  94HBB10RAT  DIP

MASTER:
Switch DIP SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP SP10T 10 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
