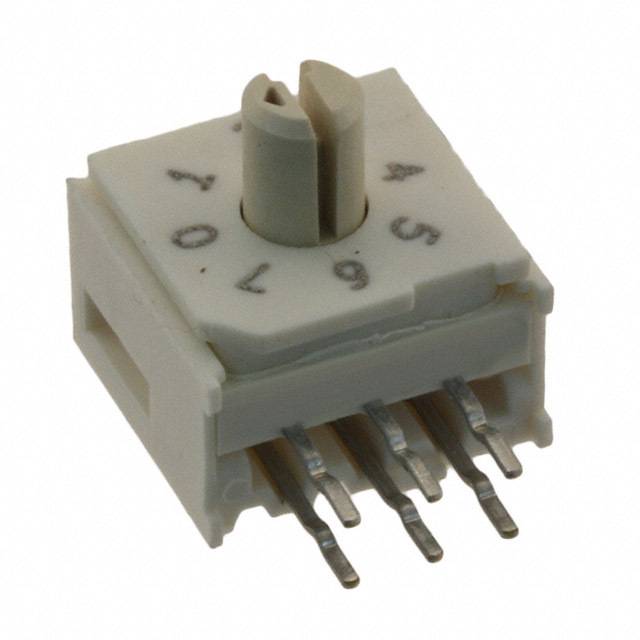

Switch DIP SP8T 8 Knob 0.03A 30VDC PC Pins 10000Cycles 2.54mm Thru-Hole Tube
Add push button-type user control to your printed circuit board using the dual in-line package switch from . This device has a maximum current rating of 0.03 A @ 30VDC. It has a SP8T configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 94HCB08RAT DIP switch has a PC pin termination style. This product"s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC. This product is 10.92 mm long, 10.16 mm tall and 11.48 mm deep.
额定电压DC 30 V
针脚数 8
开断电压 30.0 V
额定电流Max 0.03A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 30 V
接触电阻Max 50 mΩ
安装方式 Through Hole
引脚间距 2.54 mm
长度 10.92 mm
宽度 10.9 mm
高度 10.16 mm
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 10000 Cycles
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
