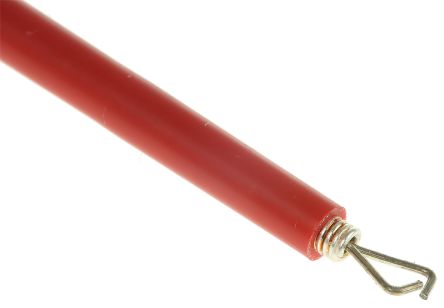

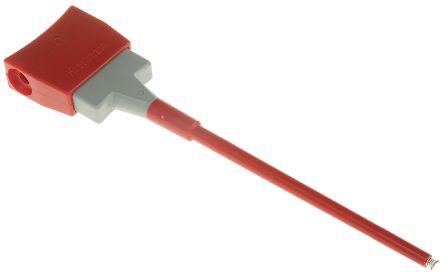

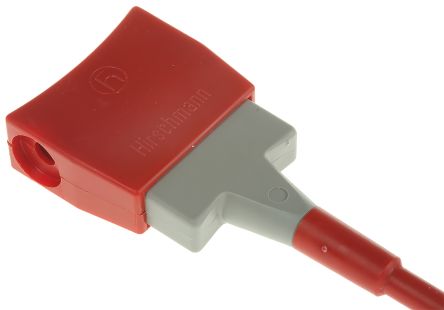

KLEPS 60 4 mm safety clamp test probeTerminal connector: Ø 4 mm, total length: 148 mm, clamping range: Ø 4 mm, jaw opening: 3.5 mm Clamp-type test probe with grip jaws and flexible shaft. The special shape of the grip jaws allows pins and wires up to a maximum Ø 4 mm to be clamped without slipping. The Ø 4 mm socket connector means that sprung Ø 4 mm plugs are can be connected. The additional screw connection means that plugs and cables up to a maximum Ø 2 mm can be connected. Socket material: brass; grip jaws also nickel-plated. Compressive force: | 25 N ---|--- Volume resistance: | 50 mΩ permitted Temperature range: | -25 °C → +60 °C ### 4 mm Hirschmann技术参数 --- 触点材料 | 镀镍黄铜 额定电压 | 60Vdc（除非另有说明） 额定电流 | 16A（除非另有说明）
The is a clamp-type Test Probe with grip jaws and flexible shaft. The special form of the grip jaws allows clamping of pins and wires up to a maximum of Ø4mm. It offers 4mm diameter brass socket connection with additional screw connection, grip jaws additionally nickel-plated.
- .
- UL94-HB Flammability rating
欧时:
KLEPS 60 4 mm safety clamp test probeTerminal connector: Ø 4 mm, total length: 148 mm, clamping range: Ø 4 mm, jaw opening: 3.5 mm Clamp-type test probe with grip jaws and flexible shaft. The special shape of the grip jaws allows pins and wires up to a maximum Ø 4 mm to be clamped without slipping. The Ø 4 mm socket connector means that sprung Ø 4 mm plugs are can be connected. The additional screw connection means that plugs and cables up to a maximum Ø 2 mm can be connected. Socket material: brass; grip jaws also nickel-plated.Compressive force: | 25 N ---|--- Volume resistance: | 50 mΩ permitted Temperature range: | -25 °C → +60 °C
e络盟:
触芯, Connector, Hook, 4 mm, Red, LAS 30, 测试夹, 拔钉锤, 4 A, 154 mm
Allied Electronics:
Test Probe; Clamp Type; KLEPS 60 RED; 4mm Clamp; Grip Jaws; 100 mm Probe
Newark:
HOOK, TEST, 4MM, RED, LAS 30
