90/00056813

热电偶, 材质绝缘, 100mm, K, -200 °C, +1200 °C, 镍铬, 2.5 m, 901221/32 Series

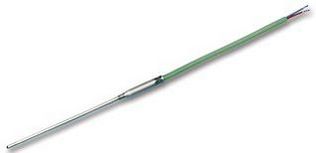

The 901221/32 series Mineral-Insulated Thermocouples with embedded wires are compressed fire-resistant magnesium oxide inside the flexible thin-walled sheath. The excellent heat transfer between the sheath and the thermocouple enables short response times t0.5 from 0.15sec and high measurement accuracy. The shock-proof construction ensures a long life. The minimum bending radius is 5x the external diameter.

.

For temperatures from -200 to +1200°C

.

Flexible sheath with shock-proof measuring insert

.

Protection tube diameter from 0.5mm

.

Fast response

.

Fitting length to suit application

.

Cable ends - bare wires, with ferrules, receptacles or multipole connectors connection

.

Stainless steel 1.4541, thermocouple type L & J inconel 2.4816, thermocouple type K protection tube
