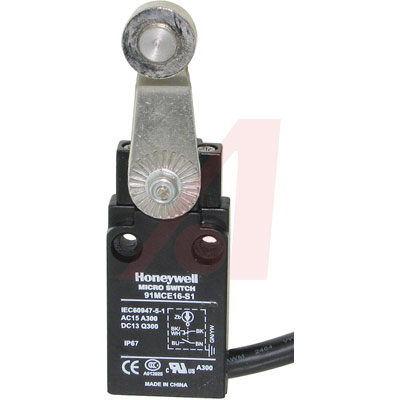

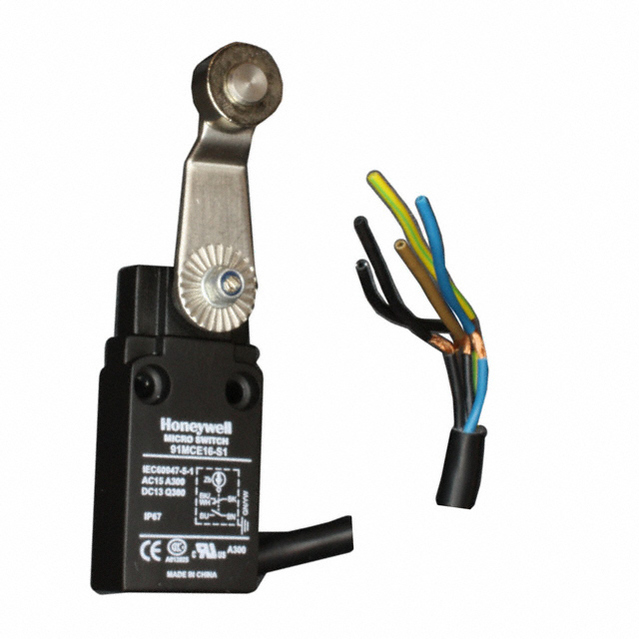

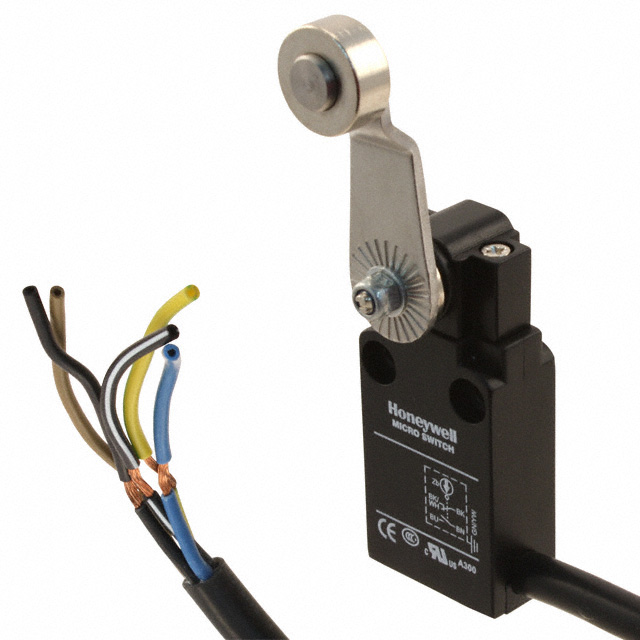

91MCE16-S1

Switch Limit N.O./N.C. SPDT Side Rotary with Roller Cable 6A 300VAC 250VDC 5N Rotary Screw Mount

The 91MCE Series limit switch is a compliment to "s existing product line of smaller, lower cost limit switches. Designed for modern industrial OEMs, the miniature package size fits in applications where space is limited. Direct acting contacts ensure the NC contacts open when actuated. The small package size can be gang mounted for applications requiring more than two switch circuits. The 20 mm mounting pattern meets most globally accepted mounting standards. The rugged metal housing is epoxy sealed and offers IP67: NEMA 1, 4, 12 and 13.

.

*Features:**

* Direct Acting Contacts

* Slow Action and Snap Action Circuitry Options

* Wide Variety of Actuator Options

* Pre-Leaded or M12 Connector Options

* Side Exit and Bottom Exit Termination

* 20 mm Mounting Hole Pattern **Specifications:**

* Sealing: NEMA 1, 4, 12, 13

* IP67

* Global Approvals: cULus, CE, CCC

* Operating Temperature: –13°F to +185°F

* Electrical Rating: AC15, A300: DC13 Q300

* Rated for 10 A Thermal

* Mechanical Life: 5 Million Operations
