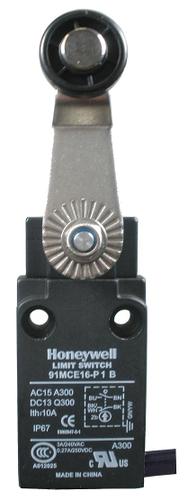

91MCE16-P1B

GLOBAL LIMIT SWITCHES SERIES 91MCE: SIDE ROTARY, FIXED LENGTH LEVER WITH METAL ROLLER 1NO 1NC DIRECT OPENING SNAP ACTION, 1M CABLE - BOTTOM EXIT

The 91MCE Series limit switch is a compliment to "s existing product line of smaller, lower cost limit switches. Designed for modern industrial OEMs, the miniature package size fits in applications where space is limited. Direct acting contacts ensure the NC contacts open when actuated. The small package size can be gang mounted for applications requiring more than two switch circuits. The 20 mm mounting pattern meets most globally accepted mounting standards. The rugged metal housing is epoxy sealed and offers IP67: NEMA 1, 4, 12 and 13.

.

*Features:**

* Direct Acting Contacts

* Slow Action and Snap Action Circuitry Options

* Wide Variety of Actuator Options

* Pre-Leaded or M12 Connector Options

* Side Exit and Bottom Exit Termination

* 20 mm Mounting Hole Pattern **Specifications:**

* Sealing: NEMA 1, 4, 12, 13

* IP67

* Global Approvals: cULus, CE, CCC

* Operating Temperature: –13°F to +185°F

* Electrical Rating: AC15, A300: DC13 Q300

* Rated for 10 A Thermal

* Mechanical Life: 5 Million Operations
