Switch Limit N.O./N.C. SPDT Top Pin Plunger Cable 5A 250VAC 28VDC 1/10HP 22.5N Linear Screw Mount Automotive
The CE switches are a rugged and versatile switch which can be applied indoors in harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multidirectional wire, and manually operated. The switches are also available with the industry standard, M12 miniature 4-pin connector. The MICRO SWITCH™ 914CE products meet UL and CSA standards, as well as European CE requirements.
艾睿:

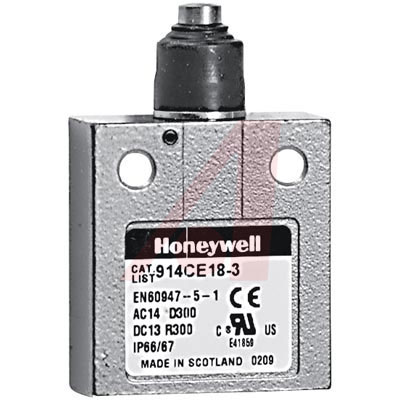

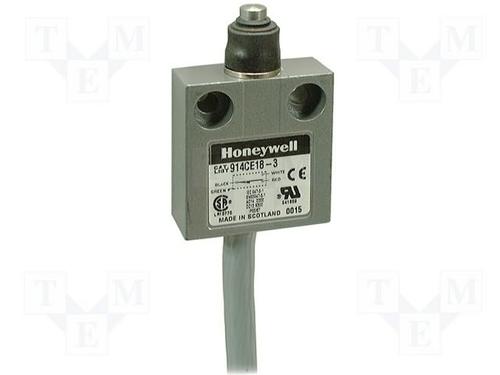

Thanks to Honeywell and their compact precision 914CE18-3 limit switch, your microprocessor-based circuit can process information based on the switch&s;s position relative to the device itself. 914CE18-3 is housed in zinc die cast. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 250VAC@CE/cULus. This limit switch has an operating temperature range of 0 °C to 70 °C. The 914CE18-3 limit switch has a cable termination style. This product is 40.01 mm long, 62.99 mm tall and 16 mm deep. The maximum AC voltage rating is 250CE/cULus VAC and the maximum DC voltage rating is 28@CE/cULus VDC.
Allied Electronics:
IP66, IP67, IP68 Snap Action Limit Switch, Plunger, Die Cast Zinc, NO/NC, 250V
Chip1Stop:
Electromechanical Switch Enclosed Switch N.O./N.C. SPDT 5A
TME:
Limit switch; pin plunger Ø7mm; SPDT; 5A; max240VAC; max28VDC
Verical:
Switch Limit N.O./N.C. SPDT Top Pin Plunger Screw Mount 5A 250VAC 28VDC 1/10HP 22.5N Linear Cable Automotive
Newark:
# HONEYWELL 914CE18-3 Limit Switch, Top Plunger, SPDT-1NO, SPDT-NC, 5 A, 250 V, 5 lbf
MASTER:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Pin Plunger Actuator with Boot Seal, 1NC 1NO Single Pole Double Throw SPDT Snap Action, 3 ft UL Cable
Online Components:
MICRO SWITCH™ Miniature Basic Switches: V7 Series, Single Pole Double Throw SPDT, 5 A 125 Vac, 175g Maximum Operating Force, ...
Electro Sonic:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Pin Plunger Actuator with Boot Seal, 1NC 1NO Single ...
