Switch Limit N.O./N.C. SPDT Top Pin Plunger Connector 3A 250VAC 11.8N Linear Screw Mount
The CE switches are a rugged and versatile switch which can be applied indoors in harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multidirectional wire, and manually operated. The switches are also available with the industry standard, M12 miniature 4-pin connector. The MICRO SWITCH™ 914CE products meet UL and CSA standards, as well as European CE requirements.
艾睿:

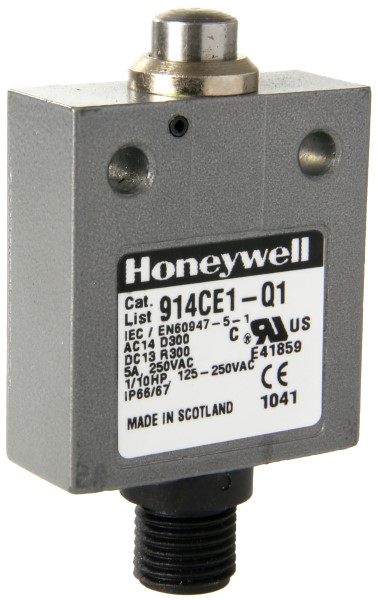

Does your circuit require specific quantitative information? Honeywell&s;s compact precision 914CE1-Q1 limit switch can provide that data using built in electro-mechanical connections. 914CE1-Q1 is housed in zinc die cast. This device has a maximum current rating of 3 A @ 250VAC@CE/cULus. It has a SPDT configuration. This limit switch has an operating temperature range of 0 °C to 70 °C. The 914CE1-Q1 limit switch has a connector termination style. The maximum AC voltage rating is 250CE/cULus VAC. This product is 40 mm long, 69 mm tall and 16 mm deep.
Allied Electronics:
Enclosed Switch; Miniature; SPDT; Top Plunger; AC Style Connector
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Pin Plunger Connector 3A 250VAC 11.8N Linear Screw Mount Automotive
TME:
Limit switch; pin plunger Ø10mm; SPDT; 3A; max250VAC; IP67; PIN:4
Verical:
Switch Limit N.O./N.C. SPDT Top Pin Plunger Screw Mount 3A 250VAC 11.8N Linear Connector Automotive
MASTER:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Pin Plunger Actuator, 1NC 1NO Single Pole Double Throw SPDT Snap Action, 4 Pin AC Micro-Connector
Online Components:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Pin Plunger Actuator, 1NC 1NO Single Pole Double Throw ...
Electro Sonic:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Pin Plunger Actuator, 1NC 1NO Single Pole Double Throw ...
