Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 5A 250VAC 28VDC 1/10HP 11.8N Linear Panel Mount/Screw Mount Automotive
The CE switches are a rugged and versatile switch which can be applied indoors in harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multidirectional wire, and manually operated. The switches are also available with the industry standard, M12 miniature 4-pin connector. The MICRO SWITCH™ 914CE products meet UL and CSA standards, as well as European CE requirements.
艾睿:

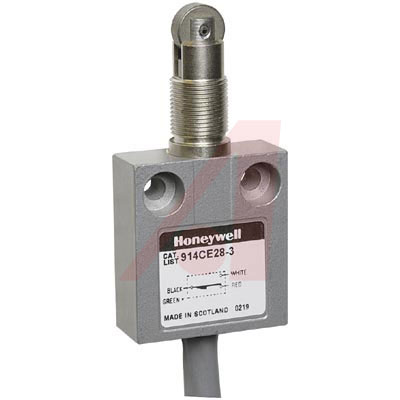

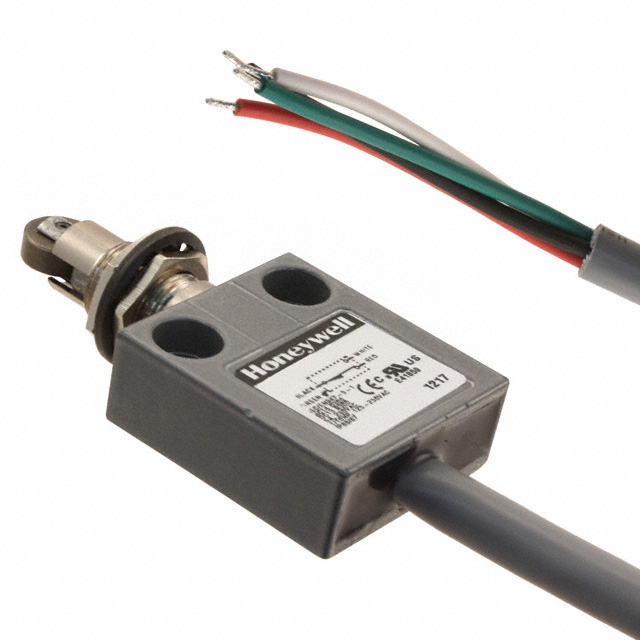

Does your circuit require specific quantitative information? Honeywell&s;s compact precision 914CE28-3 limit switch can provide that data using built in electro-mechanical connections. 914CE28-3 is housed in zinc die cast. This device has a maximum current rating of 5 A @ 250VAC@CE/cULus. It has a SPDT configuration. This limit switch has an operating temperature range of 0 °C to 70 °C. The 914CE28-3 limit switch has a cable termination style. This product is 40.01 mm long, 81 mm tall and 16 mm deep. The maximum AC voltage rating is 250CE/cULus VAC and the maximum DC voltage rating is 28@CE/cULus VDC.
Allied Electronics:
Enclosed Switch; Miniature; Pre-Wired; 5 Amps; BUSHING MOUNT Roller Plunger
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 1/10HP 11.8N Linear Panel Mount/Screw Mount
TME:
Limit switch; oblong metal roller Ø12,4mm; SPDT; 5A; max240VAC
Verical:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 5A 250VAC 28VDC 1/10HP 11.8N Linear Panel Mount/Screw Mount Automotive
MASTER:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Plunger Parallel Panel Mount Actuator, 1NC 1NO Single Pole Double Throw SPDT Snap Action, 3 ft UL Cable
Online Components:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Plunger Parallel Panel Mount Actuator, 1NC 1NO Single ...
Electro Sonic:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Plunger Parallel Panel Mount Actuator, 1NC 1NO Single ...
