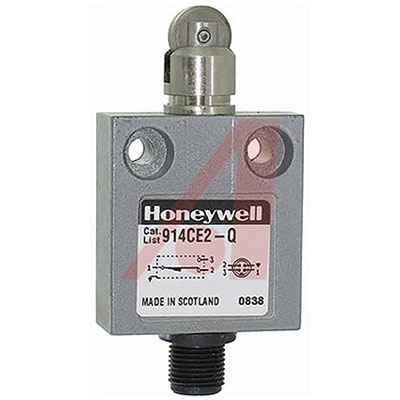

限位开关 1NC 1NO SPDT 4-Pin Mini SW: Top PLGR
The CE switches are a rugged and versatile switch which can be applied indoors in harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multidirectional wire, and manually operated. The switches are also available with the industry standard, M12 miniature 4-pin connector. The MICRO SWITCH™ 914CE products meet UL and CSA standards, as well as European CE requirements.
贸泽:
限位开关 1NC 1NO SPDT 4-Pin Mini SW: Top PLGR
艾睿:
This compact precision 914CE2-Q1 limit switch from Honeywell can activate different components within your circuitry based on electro-mechanical connections within the switch. This device has a maximum current rating of 3 A @ 250VAC@CE/cULus. It has a SPDT configuration. 914CE2-Q1 is housed in zinc die cast. This limit switch has a minimum operating temperature of 0 °C and a maximum of 70 °C. The 914CE2-Q1 limit switch has a connector termination style. This product is 40 mm long, 64.8 mm tall and 16 mm deep. The maximum AC voltage rating is 250CE/cULus VAC.
Allied Electronics:
Miniature Switch; Enclosed; Top Roller Plunger; 1NC/1NO; SPDT; Snap Action
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Micro-Connector 11.8N Linear Screw Mount
TME:
Limit switch; oblong metal roller Ø12,4mm; SPDT; 3A; max250VAC
Verical:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Screw Mount 3A 250VAC 11.8N Linear Connector Automotive
MASTER:
Miniature Enclosed Switches Series 914CE: Top Roller Plunger; 1NC 1NO SPDT Snap Action; 4-Pin AC Micro-Connector
Online Components:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Connector 3A 250VAC 11.8N Linear Screw Mount Automotive
Electro Sonic:
Miniature Enclosed Switches Series 914CE: Top Roller Plunger; 1NC 1NO SPDT Snap Action; 4-Pin AC Micro-Connector
