Switch Limit N.O./N.C. SPDT Top Pin Plunger Connector 3A 250VAC 22.5N Linear Screw Mount Automotive
The CE switches are a rugged and versatile switch which can be applied indoors in harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multidirectional wire, and manually operated. The switches are also available with the industry standard, M12 miniature 4-pin connector. The MICRO SWITCH™ 914CE products meet UL and CSA standards, as well as European CE requirements.
艾睿:

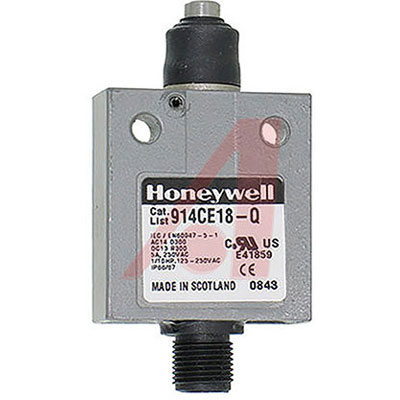

This compact precision 914CE18-Q1 limit switch from Honeywell can activate different components within your circuitry based on electro-mechanical connections within the switch. It has a SPDT configuration. 914CE18-Q1 is housed in zinc die cast. This device has a maximum current rating of 3 A @ 250VAC@CE/cULus. This limit switch has a minimum operating temperature of 0 °C and a maximum of 70 °C. The 914CE18-Q1 limit switch has a connector termination style. The maximum AC voltage rating is 250CE/cULus VAC. This product is 40 mm long, 61 mm tall and 16 mm deep.
Allied Electronics:
Limit Switch; Series 914CE; SPDT; Top Plunger; 4-Pin AC Micro-Connector
TME:
Limit switch; pin plunger Ø7mm; SPDT; 3A; max250VAC; IP67; 0÷105°C
Verical:
Switch Limit N.O./N.C. SPDT Top Pin Plunger Screw Mount 3A 250VAC 22.5N Linear Connector Automotive
MASTER:
Miniature Enclosed Switches Series 914CE: Top Plunger; 1NC 1NO SPDT Snap Action; 4-Pin AC Micro-Connector
Electro Sonic:
Miniature Enclosed Switches Series 914CE: Top Plunger; 1NC 1NO SPDT Snap Action; 4-Pin AC Micro-Connector
