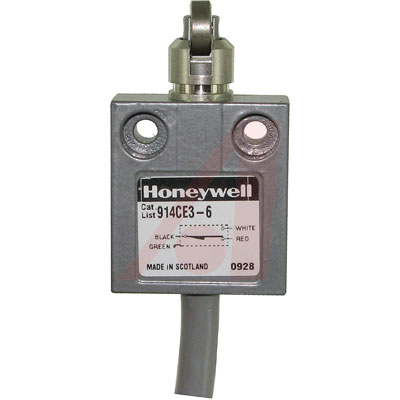

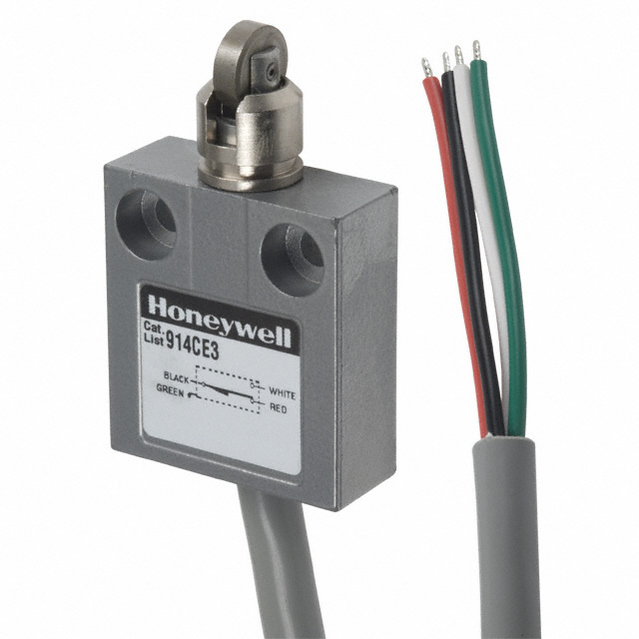

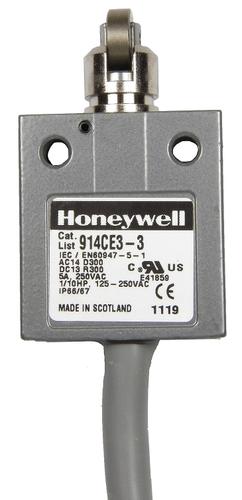

914CE3-6

914CE3-6图片1
914CE3-6图片2
914CE3-6图片3
914CE3-6图片4
914CE3-6图片5
914CE3-6图片6
914CE3-6图片7
914CE3-6图片8
914CE3-6概述

MICRO SWITCH™ Hazardous Location Switches: EX Series Explosion-Proof Limit Switch, Pin Plunger Actuator, 2NC - 2NO Double Pole Double Throw DPDT, Snap Action, Furnished with 36in Lead Wire, Class I, Group B hydrogen atmospheres

The CE switches are a rugged and versatile switch which can be applied indoors in harsh factory floor applications, as well as on outdoor equipment in extreme temperatures. A full range of actuators are available, including plain plungers, roller plungers, side rotary, multidirectional wire, and manually operated. The switches are also available with the industry standard, M12 miniature 4-pin connector. The MICRO SWITCH™ 914CE products meet UL and CSA standards, as well as European CE requirements.


艾睿:
The miniature 914CE3-6 limit switch, developed by Honeywell, can provide your project motion controlled data, as the switch itself is activated through movement or the presence of another object. 914CE3-6 is housed in zinc die cast. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 250VAC. This limit switch has a minimum operating temperature of 0 °C and a maximum of 70 °C. The 914CE3-6 limit switch has a cable termination style. The maximum AC voltage rating is 250 VAC. This product is 40 mm long, 67 mm tall and 16 mm deep.


Allied Electronics:
Limit Switch, Medium Duty, Enclosed, Top Roller, 1NC/1NO, Bottom Entry Cable


Chip1Stop:
Switch Limit N.O./N.C. SPDT Cross Roller Plunger Cable 5A 250VAC 1/10HP 12N Linear Screw Mount


Verical:
Switch Limit N.O./N.C. SPDT Cross Roller Plunger Screw Mount 5A 250VAC 1/10HP 12N Linear Cable Automotive


Newark:
# HONEYWELL  914CE3-6  Limit Switch, Cross Roller Plunger, SPDT-1NO, SPDT-NC, 5 A, 250 V, 2.75 lbf, 914CE Series


MASTER:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Perpendicular Plunger Actuator, 1NC 1NO Single Pole Double Throw SPDT Snap Action, 6 ft UL Cable


Online Components:
MICRO SWITCH™ Hazardous Location Switches: EX Series Explosion-Proof Limit Switch, Pin Plunger Actuator, 2NC - 2NO Double Pole Double Throw ...


Electro Sonic:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Perpendicular Plunger Actuator, 1NC 1NO Single Pole Double ...


914CE3-6中文资料参数规格
技术参数

接触器类型 Roller Plunger

触点类型 SPDT

针脚数 2

额定电流Max 5A @250VAC

工作温度Max 70 ℃

工作温度Min 0 ℃

额定电压 250 VAC

额定电压AC Max 250 V

封装参数

安装方式 Chassis

外形尺寸

长度 40 mm

宽度 16 mm

高度 67 mm

物理参数

工作温度 0℃ ~ 70℃

外壳材质 Zinc Die-Cast

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509055

数据手册

在线购买914CE3-6
型号: 914CE3-6
描述:MICRO SWITCH™ Hazardous Location Switches: EX Series Explosion-Proof Limit Switch, Pin Plunger Actuator, 2NC - 2NO Double Pole Double Throw DPDT, Snap Action, Furnished with 36in Lead Wire, Class I, Group B hydrogen atmospheres
