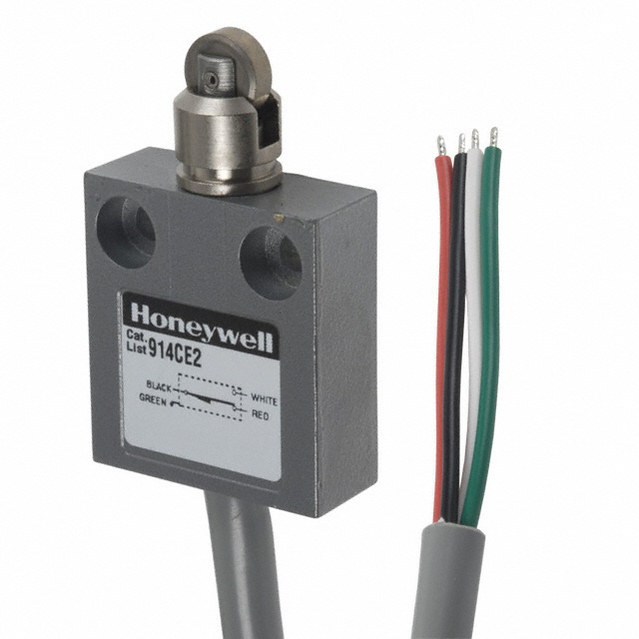

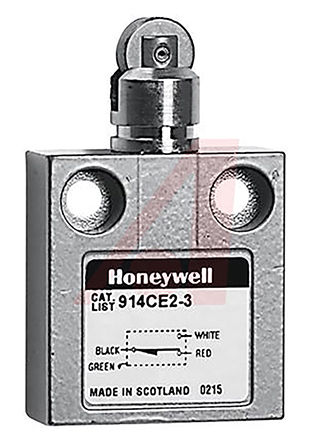

914CE 紧凑型限位开关Honeywell 的 914CE 系列紧凑型限位开关具有碳氟化合物隔膜密封,提供了高标准的可靠保护。 开关接线端子封装在环氧密封胶中,可增加恶劣工业环境中的耐用性和坚固性。 914CE 限位开关系列的紧凑设计可尽量减少安装时占用设备上的空间。 广泛的柱塞变体和不同的电缆入口位置为限位开关应用提供完整的解决方案。 压铸锌外壳,确保坚固耐用 工作温度范围宽 非常适合 10,000,000 次操作寿命周期
914CE 紧凑型限位
的 914CE 系列紧凑型限位开关具有碳氟化合物隔膜密封,提供了高标准的可靠保护。 开关接线端子封装在环氧密封胶中,可增加恶劣工业环境中的耐用性和坚固性。 914CE 限位开关系列的紧凑设计可尽量减少安装时占用设备上的空间。 广泛的柱塞变体和不同的电缆入口位置为限位开关应用提供完整的解决方案。
压铸锌外壳,确保坚固耐用
工作温度范围宽
非常适合 10,000,000 次操作寿命周期
欧时:
Minature Limit Switch Top Roller Plunger
立创商城:
914CE2-3
艾睿:
Look no further than the compact precision 914CE2-3 limit switch from Honeywell, a device that operates via the switch&s;s motion or in the presence of another object. This device has a maximum current rating of 5 A @ 250VAC@CE/cULus. 914CE2-3 is housed in zinc die cast. It has a SPDT configuration. This limit switch has a minimum operating temperature of 0 °C and a maximum of 70 °C. The 914CE2-3 limit switch has a cable termination style. This product is 40.01 mm long, 67.01 mm tall and 16 mm deep. The maximum AC voltage rating is 250CE/cULus VAC and the maximum DC voltage rating is 28@CE/cULus VDC.
Allied Electronics:
Pre-Wired Switch; Enclosed; Actuator-Roller Plunger; 2.75 OPERATING FORCE
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Cable 5A 250VAC 28VDC 1/10HP 11.8N Linear Screw Mount Automotive
TME:
Limit switch; oblong metal roller Ø12,4mm; SPDT; 5A; max240VAC
Verical:
Switch Limit N.O./N.C. SPDT Top Roller Plunger Screw Mount 5A 250VAC 28VDC 1/10HP 11.8N Linear Cable Automotive
Newark:
# HONEYWELL 914CE2-3 Limit Switch, Top Roller Plunger, SPDT-1NO, SPDT-NC, 5 A, 250 V, 2.65 lbf, 914CE Series
MASTER:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Parallel Plunger Actuator, 1NC 1NO Single Pole Double Throw SPDT Snap Action, 3 ft UL Cable
GOPHER:
Compact Limit Switch SPDT 5 AMP 3" CABLE SIDE MOUNT TOP PLUNGER ACTUATOR MICRO SWITCH
Electro Sonic:
MICRO SWITCH™ Medium-Duty Limit Switches: 914CE Series Miniature Enclosed Switch, Top Roller Parallel Plunger Actuator, 1NC 1NO Single Pole Double ...
触点电镀 Silver
接触器类型 Top Roller Plunger
额定电流 3 A
触点类型 SPDT
针脚数 2
工作温度Max 105 ℃
工作温度Min 0 ℃
额定电压 250 VAC
额定电压AC Max 250 V
安装方式 Chassis
封装 -
长度 40 mm
宽度 16 mm
高度 67.01 mm
封装 -
工作温度 0℃ ~ 105℃
外壳材质 Zinc Die-Cast
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509055
