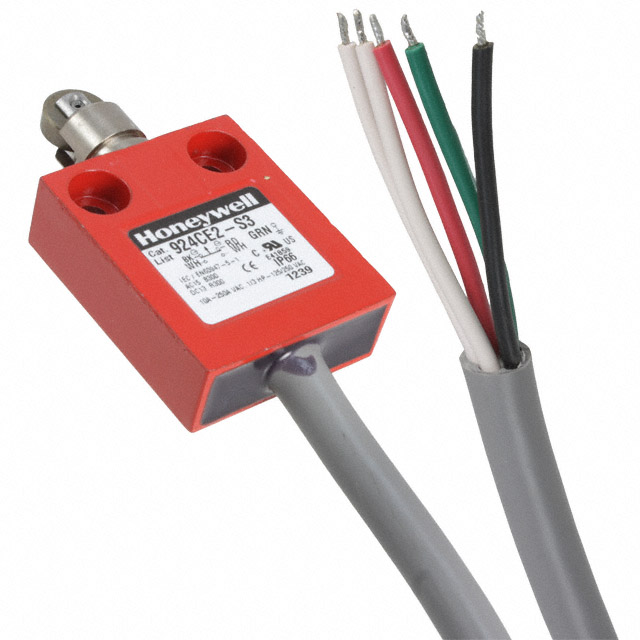

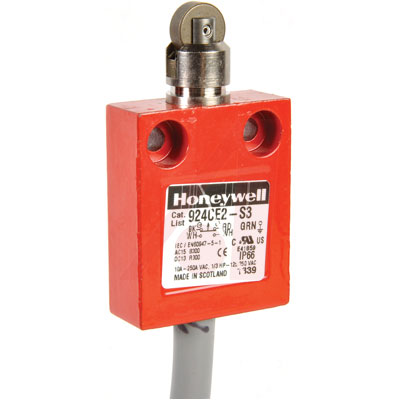

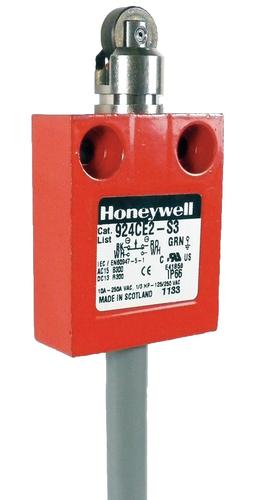

Switch Limit N.C. SPST Top Roller Plunger Cable 3A 240VAC 250VDC Linear Screw Mount
Miniature Precision Limit Switch, 10 A Rated Current, 250 VAC Rated Voltage
The 924CE Series has been tested and approved to meet the requirements of the Low Voltage directive and positive opening safety contacts per IEC/EN 60947-5-1-3. The devices are CE marked. The red color clearly differentiates this safety component in the application. The 924CE range also has UL and CSA approval. It is possible for the end user to enhance the safety level of these switches from Category 1 per EN 954-1 on their own to Categories 2, 3 or 4 per EN 954-1 when the switches are used in conjunction with our wide range of FF-SR safety control modules to form a safety system. Typical applications for these switches would use the roller plunger 24CE18 style in conjunction with cams on doors with hinges. Also available are a range of panel mounting or top mounting versions to ensure that small space or difficult mounting can be simply achieved. Several contact arrangements are available.
** Features**
* Positive Opening Operation of NC Normally Closed Contacts Conforming to IEC/EN 60947-5-1-3
* Compact Construction
* Pre-Wired
* Die-Cast Zinc Housing
* Wide Selection of Actuators
* Cable Length Variations
* Side and Bottom Exit Cable
* Simple Two-Screw Mounting
* IP 65/66/67
* UL Recognized; CSA Certified, CE Compliant
* Suitable for Applications Where Space Is at a Premium
* Fast and Easy-To-Install
* Suitable for Difficult Operating Environments
* Application Flexibility
* Enhanced Choice for Application
* Multiple Plunger Capability
