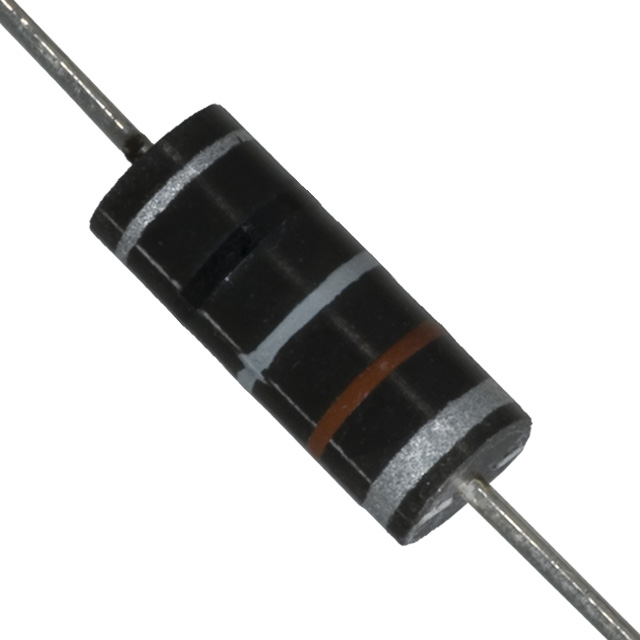

成型轴向电感 Molded Axial Inductor
RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA 890mOhm DCR AXL Bag
立创商城:
18uH ±10% 300mA 890mΩ
得捷:
FIXED IND 18UH 300MA 890 MOHM TH
艾睿:
RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA 890mOhm DCR AXL Bag
Chip1Stop:
Ind RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA AXL Bag
Verical:
RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA 890mOhm DCR AXL Bag
MASTER:
RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA 890mOhm DCR AXL Bag
Online Components:
RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA 890mOhm DCR AXL Bag
Electro Sonic:
RF Choke Shielded/Molded Wirewound 18uH 10% 2.5MHz 45Q-Factor Ferrite 300mA 890mOhm DCR AXL Bag
额定电流 300 mA
容差 ±10 %
电感 18 µH
自谐频率 45 MHz
屏蔽 Yes
测试频率 2.5 MHz
电阻DC） ≤890 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 890 mΩ
安装方式 Through Hole
封装 Axial
长度 10.92 mm
直径 4.11 mm
封装 Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504508000
