9150

9150图片1
9150图片2
9150图片3
9150图片4
9150图片5
9150概述

Gear Wrench 50 mm 组合扳手, 总长25.787 in

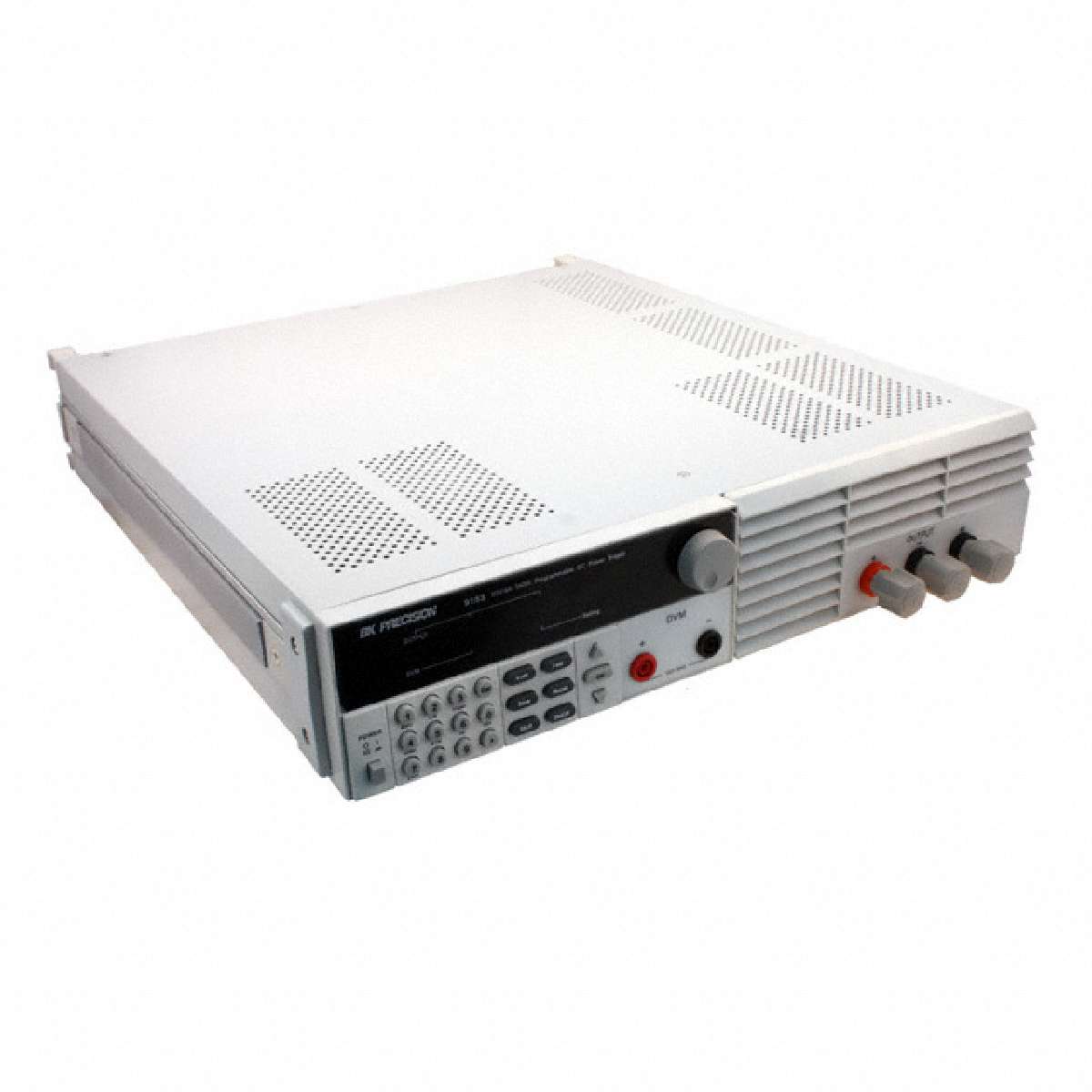

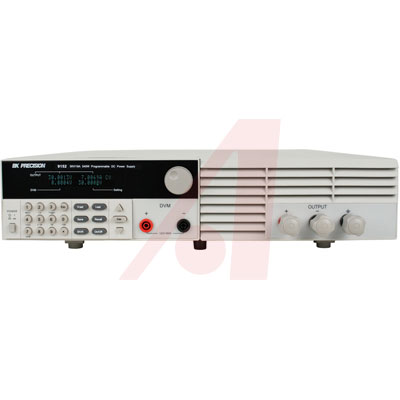

The is a high performance linear-regulated 5.2 V/60 A programmable DC power supply that provides excellent performance and features not found in other supplies in this price category. This power supply was designed for applications in design verification, production or university labs that require high yet clean and reliable power, combined with excellent resolution, accuracy and fast transient response time.

**Features:**

* Very Low Ripple and Noise Due to Linear Regulation

* Excellent Display Resolution

* Fast Transient Response Time <100 μs

* Programmable via USB and RS232 Using SCPI Compatible Command Set

* Closed Case Calibration

* List Mode Operation for Increased Throughput

* Very Quiet Due to Intelligent Fan Speed Control

* For Bench Use or Rack Mountable

* Application Software for Front Panel Emulation and Simple Test Sequence Generation Included

* Digital Port with Remote Inhibit RI Useful for Turning Multiple Power Supplies On/Off Simultaneously

* Over Voltage Protection

* Digital Volt Meter and Milliohm Meter

9150中文资料参数规格
技术参数

额定功率 312 W

输出接口数 1

输出电压 0VDC ~ 5.2VDC

输出电流 60 A

输出功率 312 W

输出电流Max 60 A

电源电压 110VAC, 220VAC

外形尺寸

长度 459 mm

高度 88 mm

物理参数

重量 29 kg

其他

产品生命周期 Obsolete

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买9150
型号: 9150
制造商: B&K Precision Corporation B&K精密
描述:Gear Wrench 50 mm 组合扳手, 总长25.787 in
