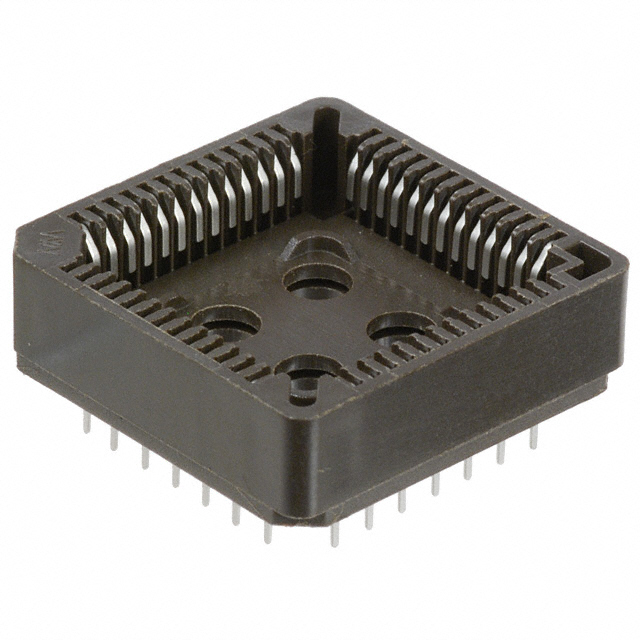

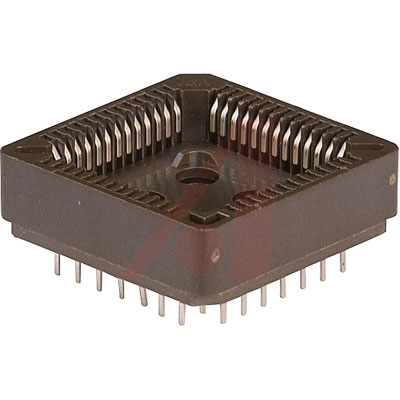

52 位置 2.54 mm 间距 通孔 PLCC 插座
Compact PLCC Socket, Surface Mount
* Insulator material is glass reinforced PPS
* Low profile for high density PC board stacking
Standoffs provide clearance for heat dissipation and cleaning.
得捷:
CONN SOCKET PLCC 52POS TIN
e络盟:
芯片和元件插座, 52 触点, PLCC插座, 2.54 mm, 940 Series
艾睿:
Never worry about data not going through by using this plcc socket 940-44-052-24-000000 connector socket from Mill-Max Mfg. Corp. This SKT connector has 52 contacts that are plated with tin over nickel. It has a straight body orientation. Its pitch is 2.54 mm. It has a socket type gender. 940-44-052-24-000000 is housed in polyphenylene sulfide. It is insulated with polyphenylene sulfide. This connector socket has an operating temperature of -40 to 120 °C. It uses the solder termination method. This product is 25.73 mm long, 8.26 mm tall and 25.73 mm deep.
Allied Electronics:
Conn; IC Socket; PLCC; 52; 940 Series; Thru-Hole; 0.1" Pin Spcng; Phosphor Bronze
Chip1Stop:
Conn PLCC Socket SKT 52 POS 2.54mm Solder ST Thru-Hole Tube
Verical:
Conn PLCC Socket SKT 52 POS 2.54mm Solder ST Thru-Hole Tube
Newark:
# MILL MAX 940-44-052-24-000000 IC & Component Socket, 940 Series, PLCC Socket, 52 Contacts, 2.54 mm, Tin Plated Contacts
