917-93-208-41-005000

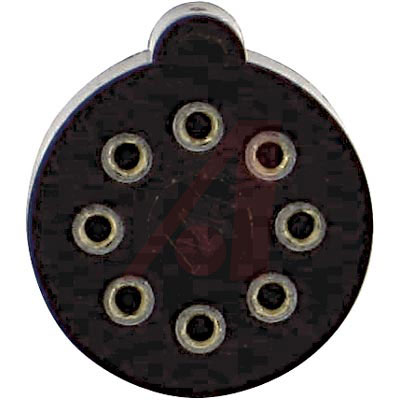

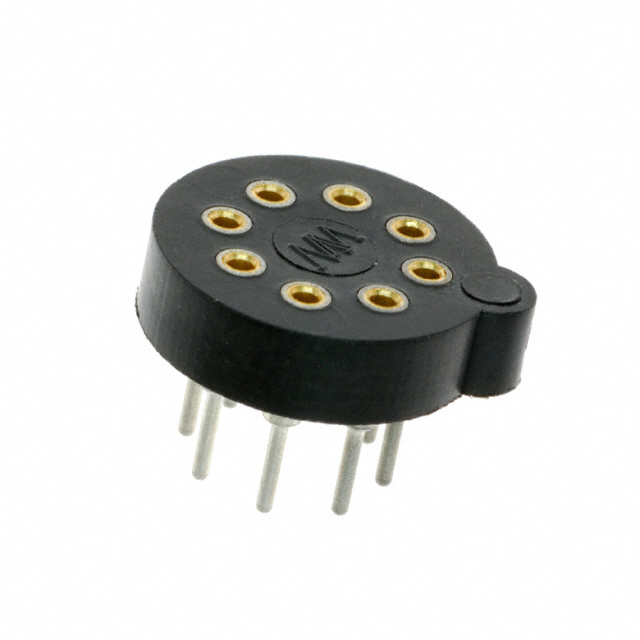

CONN SOCKET TRANSIST TO-100 8POS

0.020 in. Lead Wire Diameter, Microphone Sockets

* Series 917 TO package sockets

* Two 8 pin versions feature pin centers on 0.200 in. or 0.230 in. circle

Series 388 microphone socket is a bottom entry socket for microphones having .018 in. Dia. pins on .075 in. centers.

得捷:
CONN SOCKET TRANSIST TO-100 8POS

贸泽:
IC & Component Sockets TO-100 8PIN

艾睿:
Cleanly connect multiple wires together by using this transistor socket 917-93-208-41-005000 connector socket from Mill-Max Mfg. Corp. This SKT connector&s;s 8 contacts that are made out of beryllium copper alloy and plated with gold over nickel. It has a socket type gender. It has a maximum voltage rating of 150 VDC|100VAC. It has a straight body orientation. This device has a maximum current rating of 3 A. 917-93-208-41-005000 is housed in polychlorinated terphenyl. This connector socket has an operating temperature of -55 to 125 °C. It uses the solder termination method. This product is 10.01 mm deep. It is insulated with polychlorinated terphenyl.

Allied Electronics:
Transistor Socket, Microphone; 8; 30 u in. Au; 0.125; 200 u in. Sn/Pb

Chip1Stop:
Conn Transistor Socket SKT 8 POS Solder ST Thru-Hole Bulk
