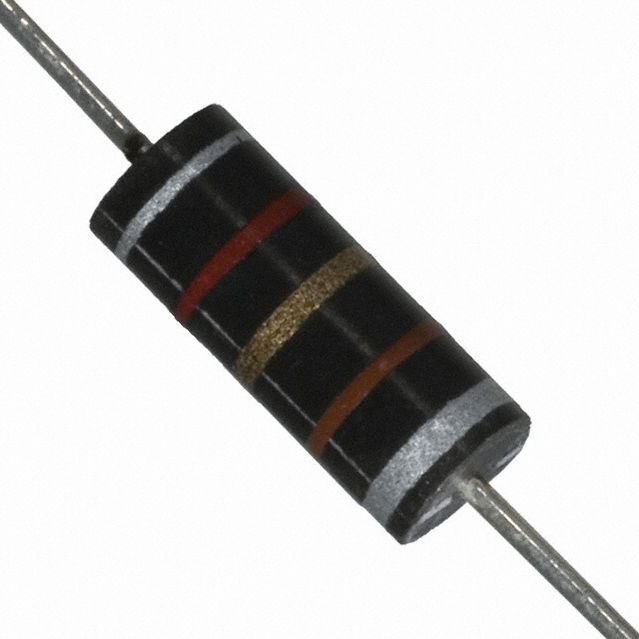

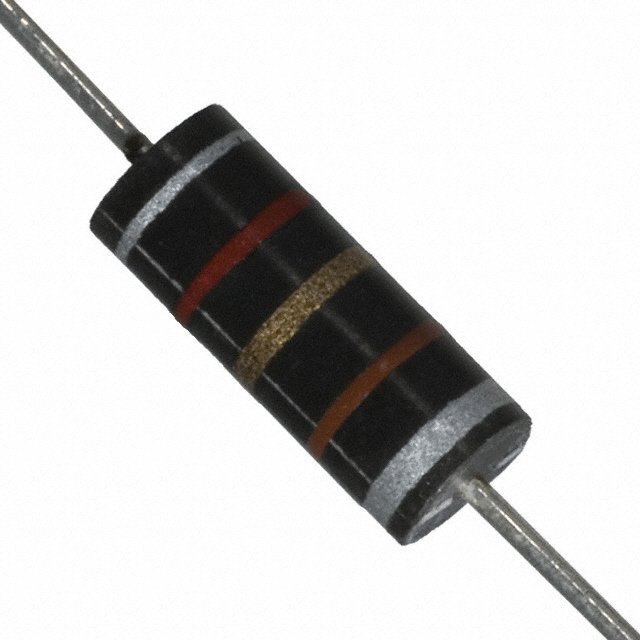

BOURNS JW MILLER 9250A-122-RC 射频扼流圈, 1.2uH, 895mA, 10%, 130MHz
RF Choke Shielded/Molded Wirewound 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 895mA 100mOhm DCR AXL Bag
得捷:
FIXED IND 1.2UH 895MA 100MOHM TH
e络盟:
射频扼流圈, 1.2uH, 895mA, 10%, 130MHz
艾睿:
RF Choke Shielded/Molded Wirewound 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 0.895A 0.1Ohm DCR AXL Bag
安富利:
Ind RF Choke Shielded/Molded 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 895mA AXL Bag
Chip1Stop:
Ind RF Choke Shielded/Molded Wirewound 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 895mA AXL Bag
Verical:
RF Choke Shielded/Molded Wirewound 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 0.895A 0.1Ohm DCR AXL Bag
Newark:
# BOURNS JW MILLER 9250A-122-RC Axial Leaded High Frequency Inductor, Molded Choke, 9250A Series, 1.2 µH, 895 mA, 0.1 ohm, ± 10%
Online Components:
RF Choke Shielded/Molded Wirewound 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 895mA 100mOhm DCR AXL Bag
Electro Sonic:
RF Choke Shielded/Molded Wirewound 1.2uH 10% 7.9MHz 44Q-Factor Ferrite 0.895A 0.1Ohm DCR AXL Bag
额定电流 895 mA
容差 ±10 %
电感 1.2 µH
自谐频率 130 MHz
Q值 44.0
屏蔽 Yes
电感公差 ±10 %
测试频率 7.9 MHz
电阻DC） ≤100 mΩ
额定电流DC 895 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
电阻DC Max 0.1 Ω
安装方式 Through Hole
引脚数 2
封装 Axial
长度 10.92 mm
直径 4.11 mm
封装 Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bag
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8504508000
